Запчасти Case IH 3640 (06) - LAMPS AND LIGHTING HARNESS

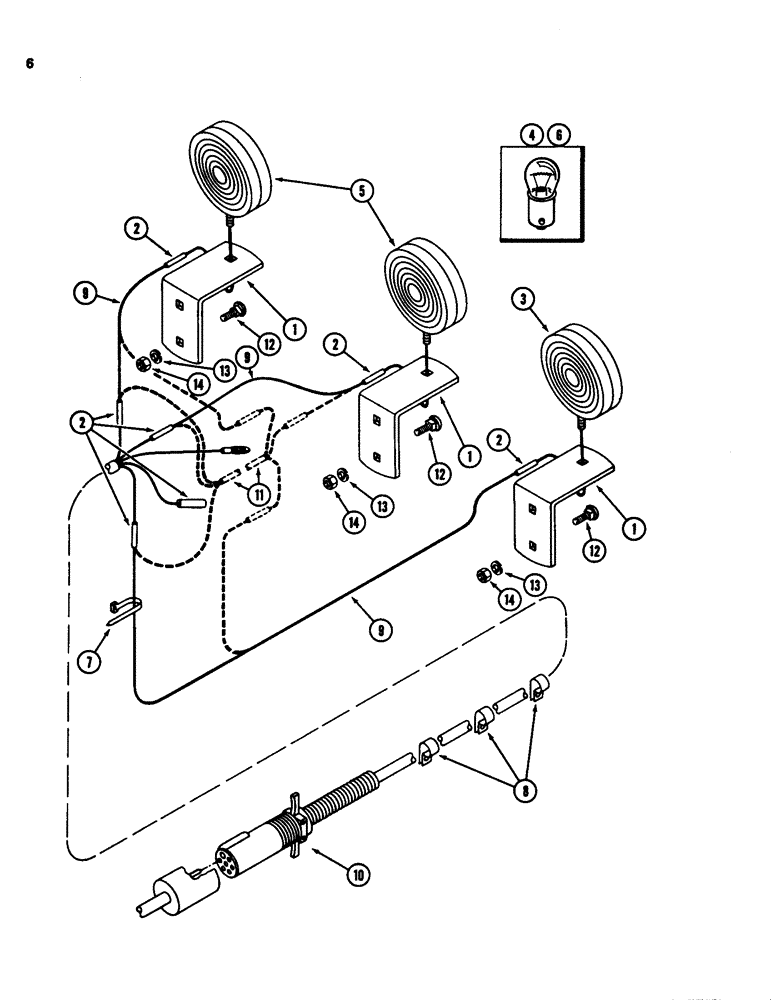

Схема запчастей Case IH 3640 - (06) - LAMPS AND LIGHTING HARNESS

Артикул

Название

Примечание

Количество

1

ZA708451

BRACKET

- lamp

3шт.

2

ZA707964

TERMINAL CONNECTOR,14 - 16

TERMINAL - butt splice

1шт.

3

ZA103734

LIGHT

LAMP ASSEMBLY - tail, red

1шт.

4

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156

1шт.

5

ZA103735

LIGHT

LAMP ASSEMBLY - flasher, amber

2шт.

6

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156

1шт.

7

291207C1

CLAMP

STRAP - tie

1шт.

8

299614C1

CLAMP

- tube

3шт.

9

NSS

NOT SOLD SEPARAT

WIRE - 14 gauge (Cut from 100 foot roll 995055R1)

1шт.

995055R1

CABLE

WIRE - 14 gauge, 100 foot (30 m) roll

1шт.

10

ZA104936

HARNESS

- lighting

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE - 3 conductor, 14 gauge (Cut from 100 foot roll 997130R2)

1шт.

997130R2

CABLE

- 3 conductor, 14 gauge, 100 foot (30 m) roll

1шт.

12

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

6шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

120376

NUT,5/16"-18, G5

6шт.

Выбрано товаров: 16
