Запчасти Case IH 3640 (68) - DECALS, ENGLISH LANGUAGE

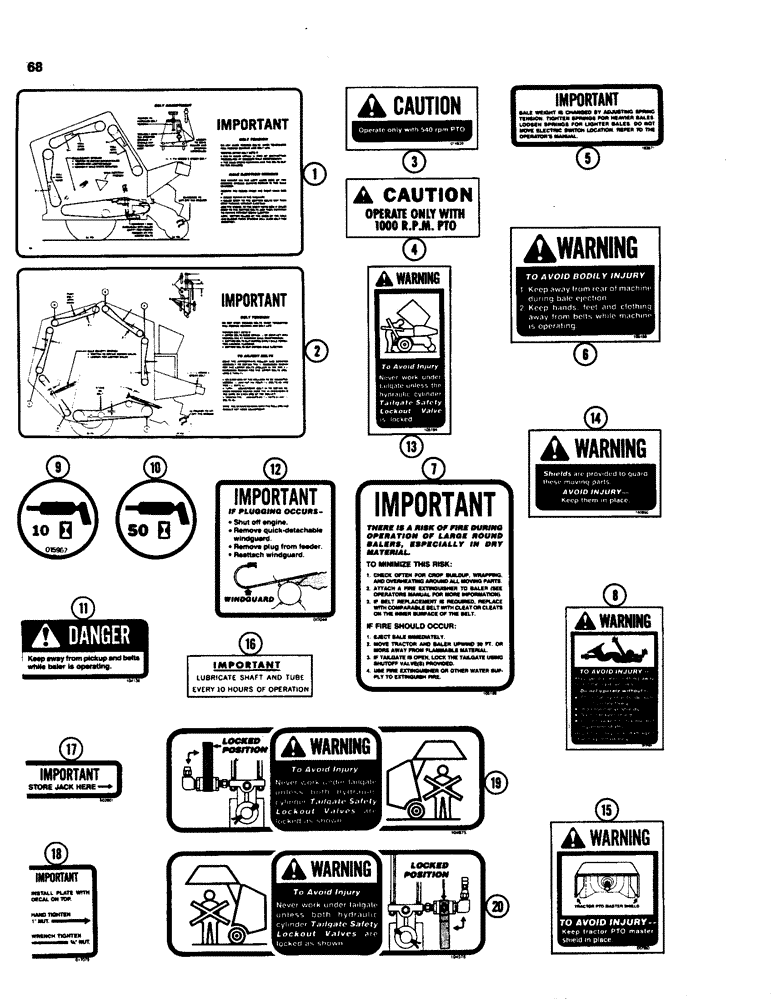

Схема запчастей Case IH 3640 - (68) - DECALS, ENGLISH LANGUAGE

Артикул

Название

Примечание

Количество

1265869C93

PACKAGE

KIT - decal

1шт.

1

NSS

NOT SOLD SEPARAT

DECAL - important, bale ejection wedges (Not used this application)

1шт.

2

NSS

NOT SOLD SEPARAT

DECAL - important, spring tension adjustment

1шт.

3

96319C1

DECAL

- caution, 540 rpm PTO

1шт.

4

96322C1

PRODUCT GRAPHIC

DECAL - caution, 1000 rpm PTO (Not used this application)

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL - important, changing bale weight

2шт.

6

ZA105196

PRODUCT GRAPHIC

DECAL - warning, keep away from rear

2шт.

7

NSS

NOT SOLD SEPARAT

DECAL - important fire risk

1шт.

8

96332C1

PRODUCT GRAPHIC

DECAL - warning, rotating drive lines

1шт.

9

NSS

NOT SOLD SEPARAT

DECAL - grease, 10 hours

2шт.

10

NSS

NOT SOLD SEPARAT

DECAL - grease, 50 hours

2шт.

11

ZA104136

DECAL

- danger, keep away from pickup and belts

2шт.

12

NSS

NOT SOLD SEPARAT

DECAL - important, if plugging occurs

1шт.

13

ZA105194

PRODUCT GRAPHIC

DECAL - warning, tailgate safety lockout valve (Not used this application)

2шт.

14

ZA740950

DECAL

- warning, keep shields in place

7шт.

15

96335C1

PRODUCT GRAPHIC

DECAL - warning, tractor PTO master shield

1шт.

16

NSS

NOT SOLD SEPARAT

DECAL - important, lubricate shaft and tube

1шт.

17

NSS

NOT SOLD SEPARAT

DECAL - important, store jack here

1шт.

18

NSS

NOT SOLD SEPARAT

DECAL - important, install plate (Not used this application)

1шт.

19

ZA104575

PRODUCT GRAPHIC

DECAL - warning, tailgate safety lockout valve, left

1шт.

20

ZA104576

PRODUCT GRAPHIC

DECAL - warning, tailgate safety lockout valve, right

1шт.

Выбрано товаров: 21
