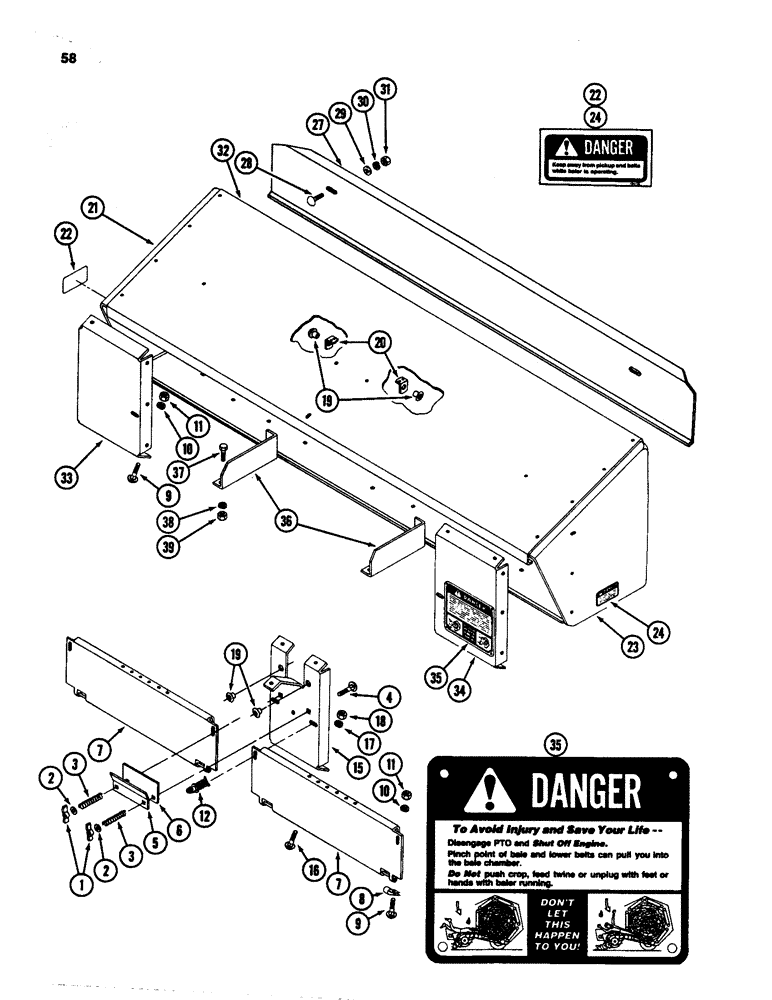

Запчасти Case IH 3640 (58) - TWINE BOX

1

924137R1

NUT

- wing lock, 5/16 inch NC

2шт.

2

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

3

1254042C1

SPRING

- compression

2шт.

4

598807R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT - round head square neck, 5/16 NC x 2 inch

2шт.

5

ZA105436

BAR

- twine tensioner

1шт.

6

ZA105437

PLATE

- backup, tensioner

1шт.

7

ZA105968

DOOR

- twine box

2шт.

8

299402C1

CLAMP

CLIP - hinge

4шт.

9

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

10

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

120376

NUT,5/16"-18, G5

1шт.

12

188029C1

LATCH

FASTENER - panel

4шт.

15

ZA104248

BRACKET

- tensioner bar

1шт.

16

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

17

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

120377

NUT,3/8" - 16, Gr 5

2шт.

19

96316C1

GUIDE

- twine

4шт.

20

ZA104538

BRACKET

- twine guide

2шт.

21

ZA105184

PLATE

- end, right

1шт.

22

REF

INSTRUCTION

DECAL - danger, keep away from pickup and belts (See Page 69)

1шт.

23

ZA105185

PLATE

- end, left

1шт.

24

REF

INSTRUCTION

DECAL - danger, keep away from pickup and belts (See Page 69)

1шт.

27

ZA105955

SHIELD

- top

1шт.

28

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

- round head short square neck, 5/16 NC x 5/8 inch, Grade 1

2шт.

29

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

30

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

120376

NUT,5/16"-18, G5

2шт.

32

ZA105986

COVER

- twine box

1шт.

33

ZA104539

BRACKET

- twine box, right

1шт.

34

ZA105189

BRACKET

- twine box, left

1шт.

35

REF

INSTRUCTION

PLATE - graphic, danger, bale chamber pinch point (See Page 71)

1шт.

36

ZA104481

DIVIDER

- twine box

5шт.

37

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

15шт.

38

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

39

120376

NUT,5/16"-18, G5

15шт.
