Запчасти Case IH 3640 (56) - BELTS AND ROLLER ASSEMBLIES 13 AND 14

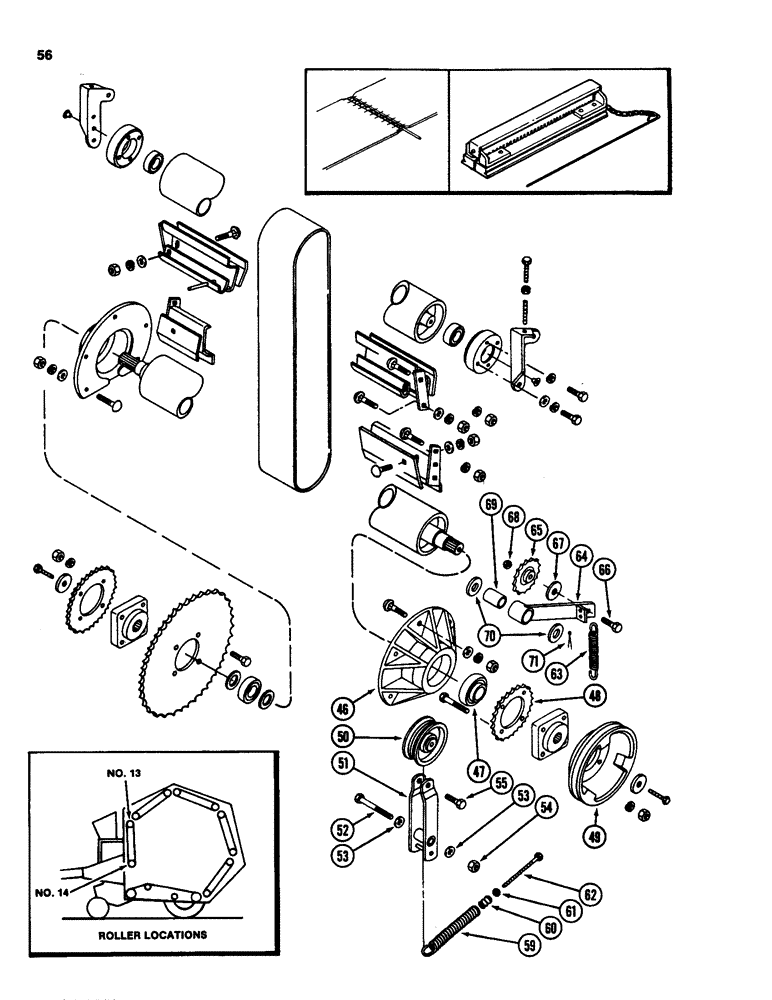

Схема запчастей Case IH 3640 - (56) - BELTS AND ROLLER ASSEMBLIES 13 AND 14

Артикул

Название

Примечание

Количество

46

ZA104841

HOUSING

- bearing

1шт.

47

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- ball, 1.57 inch (40 mm) ID

1шт.

48

ZA104226

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

49

ZA104246

PULLEY

- pickup drive, upper, regular speed, 7-1/4 inch (184 mm) OD (See Note)

1шт.

49

ZA103001

PULLEY

- pickup drive, upper, high speed, 8-1/2 inch (216 mm) OD (See Note)

1шт.

50

ZA103001

PULLEY

- idler

1шт.

51

ZA104215

ARM

- idler pulley

1шт.

52

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

1шт.

53

25637R1

WASHER

- flat, hardened

2шт.

54

9413956

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

55

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

59

ZA271276

SPRING

- extension

1шт.

60

ZA201085

INSERT

- spring

1шт.

61

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

62

750832R1

BOLT

- hex, 1/2 NC x 4-1/2 inch

1шт.

63

ZA103192

SPRING

- extension

1шт.

64

ZA103344

BRACKET

ARM - tightener

1шт.

65

541857R92

SPROCKET,15T

- idler

1шт.

66

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

67

23836R1

WASHER

- flat, 21/32 x 1-3/8 x 7/64 inch (17 x 35 x 3 mm)

4шт.

68

9413960

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

69

ZA103341

BUSHING

- arm

1шт.

70

446257

WASHER,3/4" x 1 3/4" x .148"

- flat, 13/16 x 1-3/4 x 1/8 inch (21 x 44 x 3 mm)

2шт.

71

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

Выбрано товаров: 24
