Запчасти Case IH 3640 (02) - ELECTRIC TWINE TIE SYSTEM

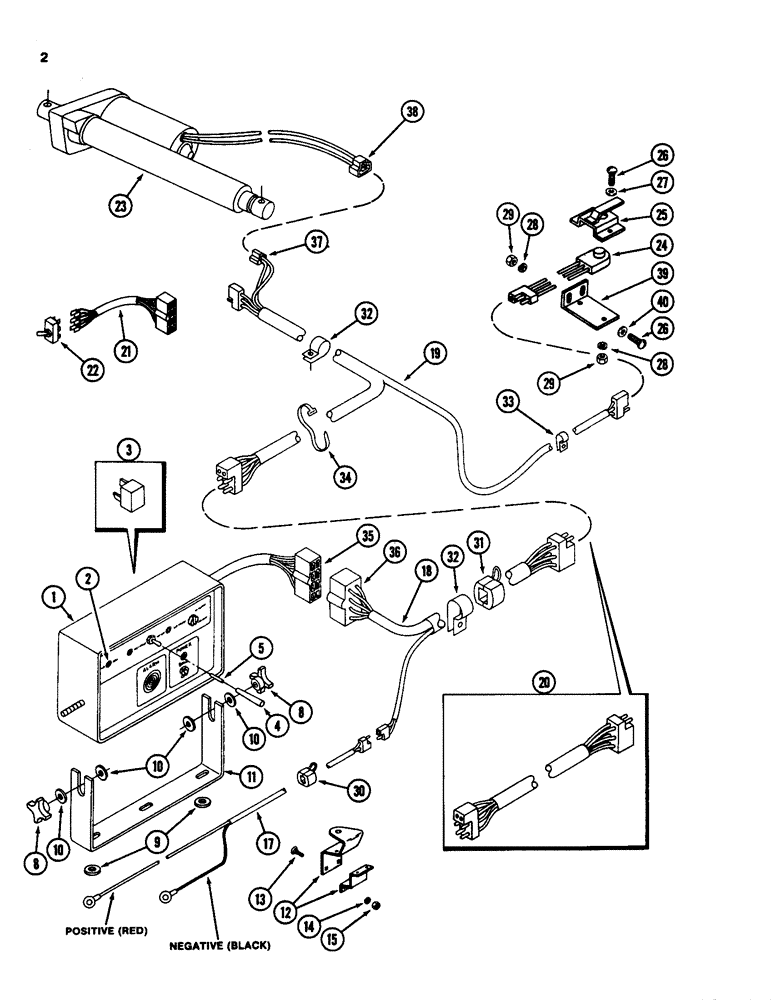

Схема запчастей Case IH 3640 - (02) - ELECTRIC TWINE TIE SYSTEM

Артикул

Название

Примечание

Количество

1

ZA105892

CONTROL

BOX ASSEMBLY - control

1шт.

2

1261437C1

LAMP

BULB - lamp, No. 37

1шт.

3

131181C1

RELAY

- control box

1шт.

4

ZA734450

HANDLE

- toggle switch

1шт.

5

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

ZA103773

PACKAGE

KIT - mounting, control box

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB - mounting

2шт.

9

179454C1

RUBBER WASHER

- rubber

2шт.

10

NLS

NO LONGER SERVICED

- flat, 5/16 x 47/64 x 3/64 inch (8 x 19 x 1 mm)

4шт.

11

ZA105277

BRACKET

- mounting

1шт.

12

1261522C91

BRACKET, SUPPORTING

BRACKET ASSEMBLY - cab mounting

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

13

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

14

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

ZA104615

HARNESS

- tractor

1шт.

18

ZA104616

HARNESS

- control box

1шт.

19

ZA105524

HARNESS

- baler

1шт.

20

ZA103745

HARNESS

- extension

1шт.

21

ZA105270

HARNESS

KIT - harness, emergency (For temporary operation of actuator) (Also order switch 91774C1)

1шт.

22

91774C1

ASSEMBLY

SWITCH - toggle, double pole double throw, momentary

1шт.

23

REF

INSTRUCTION

ACTUATOR - twine tube (See Page 5)

1шт.

24

ZA103633

SWITCH

- bale density

1шт.

25

ZA104562

COVER

ASSEMBLY - switch

1шт.

26

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head slotted, No. 10 NC x 1/2 inch

4шт.

27

221431

WASHER - flat, 5/32 x 3/8 x 1/32 inch (4 x 10 x 1 mm)

2шт.

28

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

29

26303R1

HARDWARE,#10-24

NUT - hex, No. 10 NC

4шт.

30

ZA104394

BUSHING

- strain relief

1шт.

31

169851C1

GROMMET

BUSHING - strain relief

1шт.

32

299407C1

CLAMP

- tube

4шт.

33

299404C1

CLAMP

- tube

3шт.

34

291207C1

CLAMP

STRAP - tie

1шт.

ZA105438

KIT

- connector

1шт.

35

245430C1

CONNECTOR, ELEC

CONNECTOR - male, 8 terminal

1шт.

36

3195530R1

CONNECTOR, ELEC

CONNECTOR - female, 8 terminal

1шт.

37

877291R1

ELEC CONNECTOR,Female

CONNECTOR - male, 2 terminal

1шт.

38

872290R1

ELEC CONNECTOR,Male

CONNECTOR - fe, 2 terminal Male

1шт.

739145C1

ELEC. TERMINAL PIN,Male, 3 - 5 mm2

TERMINAL - male (Not shown)

10шт.

739067C1

TERMINAL CONNECTOR,Female, 5 mm2

TERMINAL - female (Not shown)

10шт.

39

ZA104561

BRACKET

- switch

1шт.

40

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (6 x 13 x 1 mm)

2шт.

Выбрано товаров: 41
