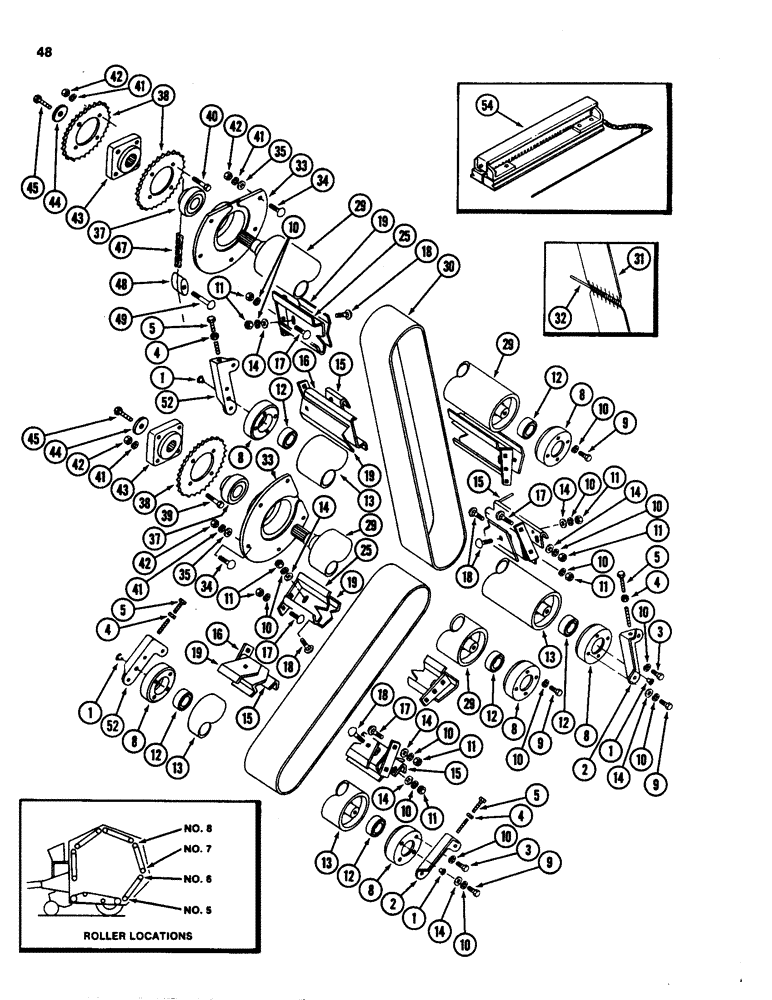

Запчасти Case IH 3640 (48) - BELTS AND ROLLER ASSEMBLIES 5 THROUGH 8

1

1017954R1

PLUG,Cap, .485" OD

- cap

8шт.

2

ZA105038

BLOCK

- adjusting, left

2шт.

3

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

4

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch

4шт.

8

ZA105796

COLLAR

- bearing

6шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

1шт.

10

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

120376

NUT,5/16"-18, G5

1шт.

12

ZA105794

BALL BEARING

BEARING - hex bore, 1.25 inch (32 mm) ID

6шт.

13

ZA105916

ROLLER

ASSEMBLY - Number 5 and 7

2шт.

14

21448R1

WASHER

- flat, 11/32 x 7/8 x 3/64 inch (9 x 22 x 1 mm)

1шт.

15

ZA105997

DIVIDER

- belt

2шт.

16

ZA105999

BRACKET

- divider/scraper

2шт.

17

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch, Grade 1

1шт.

18

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

19

ZA105996

STRIPPER

SCRAPER - roller

4шт.

25

ZA105995

BRACKET

- scraper

2шт.

29

ZA105922

ROLLER

ASSEMBLY - Number 6 and 8

2шт.

30

ZA105005

BELT

- roller, endless, 11 inch (279 mm) wide (Alternate part is ZA105003)

8шт.

31

ZA105003

BELT

- Roller, 11 inch (279 mm) wide (Alternate part is ZA105005)

8шт.

32

ZA102977

PIN

- belt

1шт.

33

ZA104841

HOUSING

- bearing

2шт.

34

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

- round head square neck, 3/8 NC x 1-1/4 inch, Grade 1

10шт.

35

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 mm)

10шт.

37

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- ball, 1.57 inch (40 mm) ID

2шт.

38

ZA104227

SPROCKET ASSY.

SPROCKET - 30 tooth

3шт.

39

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

40

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

4шт.

41

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

42

120377

NUT,3/8" - 16, Gr 5

18шт.

43

ZA104593

HUB

- splined

2шт.

44

357020R1

WASHER

- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)

2шт.

45

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex lock, 1/2 NC x 1-1/4 inch, Grade 8

2шт.

47

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - Roller 8 to Roller 6 (Use 121 links from bulk chain 611362R91, 1 offset link 612612R91, and 1 connecting link 574532R91)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot (3 m) roll

1шт.

612612R91

CHAIN LINK

LINK - chain, offset

1шт.

574532R91

CLIP, SPRING

LINK - chain, connnecting

1шт.

48

ZA304776

SLIDE

- chain

1шт.

49

27464R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

BOLT - round head square neck, 1/2 NC x 4 inch

1шт.

52

ZA105037

BLOCK

- adjusting, right

2шт.

54

1254050C1

TOOL

LACER - belt, 6 inch (152 mm)

1шт.

208790C1

PACKAGE

KIT - repair, belt (Box of lacing hooks)

1шт.
