Запчасти Case IH 3640 (46) - BELTS AND ROLLER ASSEMBLIES 1 THROUGH 4

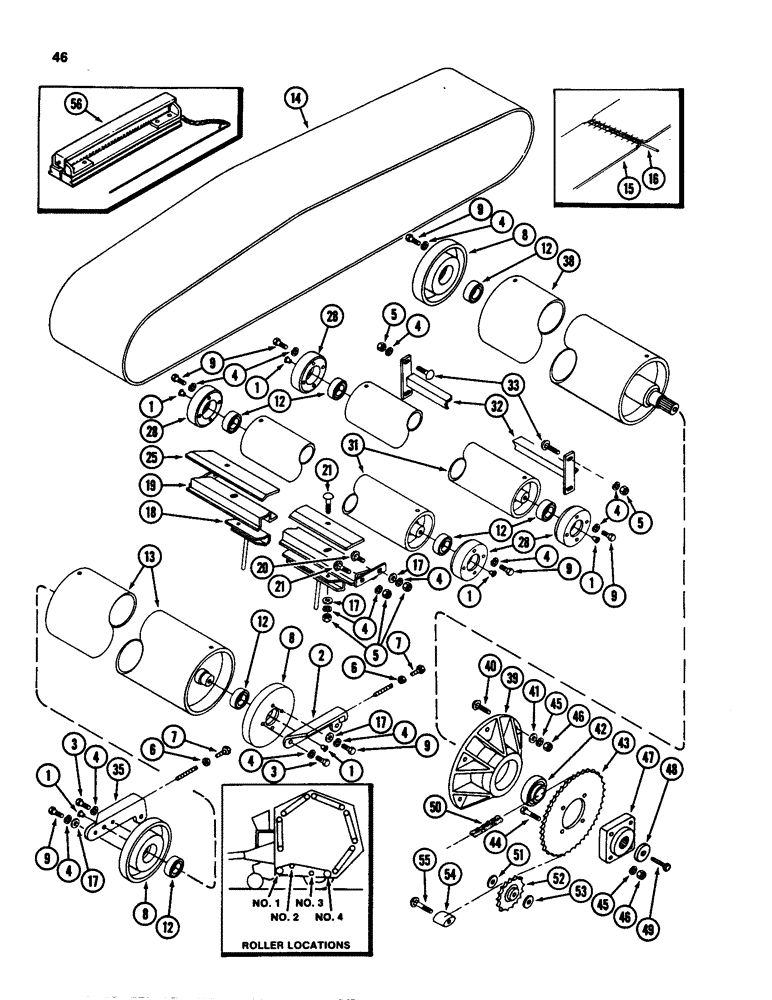

Схема запчастей Case IH 3640 - (46) - BELTS AND ROLLER ASSEMBLIES 1 THROUGH 4

Артикул

Название

Примечание

Количество

1

1017954R1

PLUG,Cap, .485" OD

- cap

6шт.

2

ZA105070

BLOCK

- adjusting, left

1шт.

3

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

4шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

120376

NUT,5/16"-18, G5

1шт.

6

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

8

ZA105797

COLLAR

- bearing

3шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

1шт.

12

ZA105794

BALL BEARING

BEARING - hex bore, 1.25 inch (32 mm) ID

7шт.

13

ZA105921

ROLLER

ASSEMBLY - Number 1

1шт.

14

ZA104411

BELT

- Roller, endless, 11 inch (279 mm) wide (Alternate part is ZA104108)

4шт.

15

ZA104108

BELT

- Roller, 11 inch (279 mm) wide (Alternate part is ZA104411)

4шт.

16

ZA102977

PIN

- belt

1шт.

17

21448R1

WASHER

- flat, 11/32 x 7/8 x 3/64 inch (9 x 22 x 1 mm)

1шт.

18

ZA105992

DIVIDER

- belt

1шт.

19

ZA105998

BRACKET

- divider/scraper

1шт.

20

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch, Grade 1

2шт.

21

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

7шт.

25

ZA105996

STRIPPER

SCRAPER - roller

1шт.

28

ZA105796

COLLAR

- bearing

4шт.

31

ZA105916

ROLLER

ASSEMBLY - Number 2 and 3

2шт.

32

ZA105966

STRIPPER

SCRAPER - roller

1шт.

33

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

35

ZA105069

BLOCK

- adjusting, right

1шт.

38

ZA105924

ROLLER

ASSEMBLY - Number 4

1шт.

39

ZA105019

HOUSING

- bearing

1шт.

40

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

- round head square neck, 3/8 NC x 1-1/4 inch, Grade 1

5шт.

41

27503R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 mm)

5шт.

42

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- ball, 1.57 inch (40 mm) ID

1шт.

43

ZA104230

SPROCKET ASSY.

SPROCKET - 40 tooth

1шт.

44

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

45

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

46

120377

NUT,3/8" - 16, Gr 5

1шт.

47

ZA104593

HUB

- splined

1шт.

48

357020R1

WASHER

- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)

1шт.

49

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex lock, 1/2 NC x 1-1/4 inch, Grade 8

1шт.

50

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - Roller 14 to Roller 4 (Use 171 links from bulk chain 611362R91, 1 offset link 612612R91, and 1 connecting link 574532R91)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot (3m) roll

1шт.

612612R91

CHAIN LINK

LINK - chain, offset

1шт.

574532R91

CLIP, SPRING

LINK - chain, connecting

1шт.

51

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 35 x 2 mm)

1шт.

52

541857R92

SPROCKET,15T

ASSEMBLY - idler

1шт.

53

446470

BRAKE FLUID TANK

- flat, 3/8 x 1-1/8 x 3/64 inch (10 x 29 x 1 mm)

1шт.

54

ZA304776

SLIDE

- chain

1шт.

55

27464R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

BOLT - round head square neck, 1/2 NC x 4 inch

1шт.

56

1254050C1

TOOL

LACER - belt, 6 inch (152 mm)

1шт.

208790C1

PACKAGE

KIT - repair, belt (Box of lacing hooks)

1шт.

Выбрано товаров: 48
