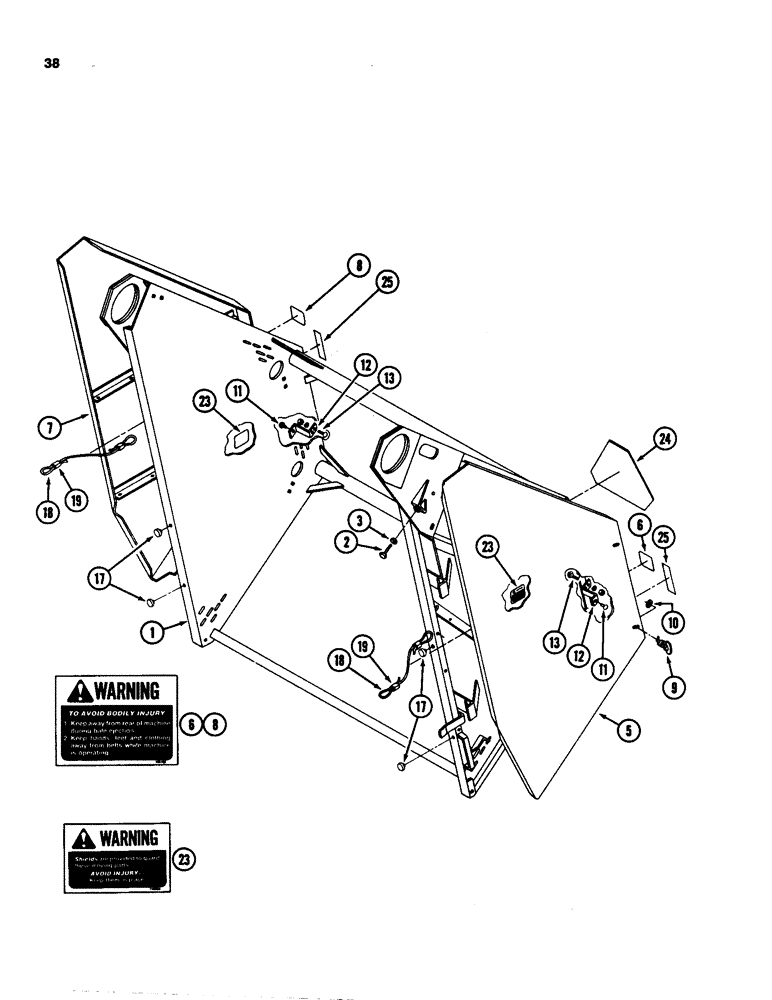

Запчасти Case IH 3640 (38) - TAILGATE FRAME

1

ZA105957

HOUSING

- rear

1шт.

2

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

3

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

ZA105182

SHIELD

- rear, left

1шт.

6

REF

INSTRUCTION

DECAL - warning, keep away from rear (See Page 69)

1шт.

7

ZA105181

SHIELD

- rear, right

1шт.

8

REF

INSTRUCTION

DECAL - warning, keep away from rear (See Page 69)

1шт.

9

ZA103138

FASTENER

- shield

4шт.

10

ZA103937

WASHER

- retaining

8шт.

11

ZA103821

BUMPER

- rubber

2шт.

12

ZA10103

BRACKET - bumper

2шт.

13

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

17

160224

BUMPER - rubber (replaces 535329R1)

4шт.

18

ZA104429

CABLE

- shield

2шт.

19

96326C1

SLEEVE

- cable

4шт.

23

REF

INSTRUCTION

DECAL - warning, keep shields in place (See Page 69)

2шт.

24

REF

INSTRUCTION

DECAL - SMV emblem (See Page 71)

1шт.

25

REF

INSTRUCTION

DECAL - reflector, red (See Page 71)

2шт.
