Запчасти Case IH 3640 (34) - TRIP GATE ATTACHMENT

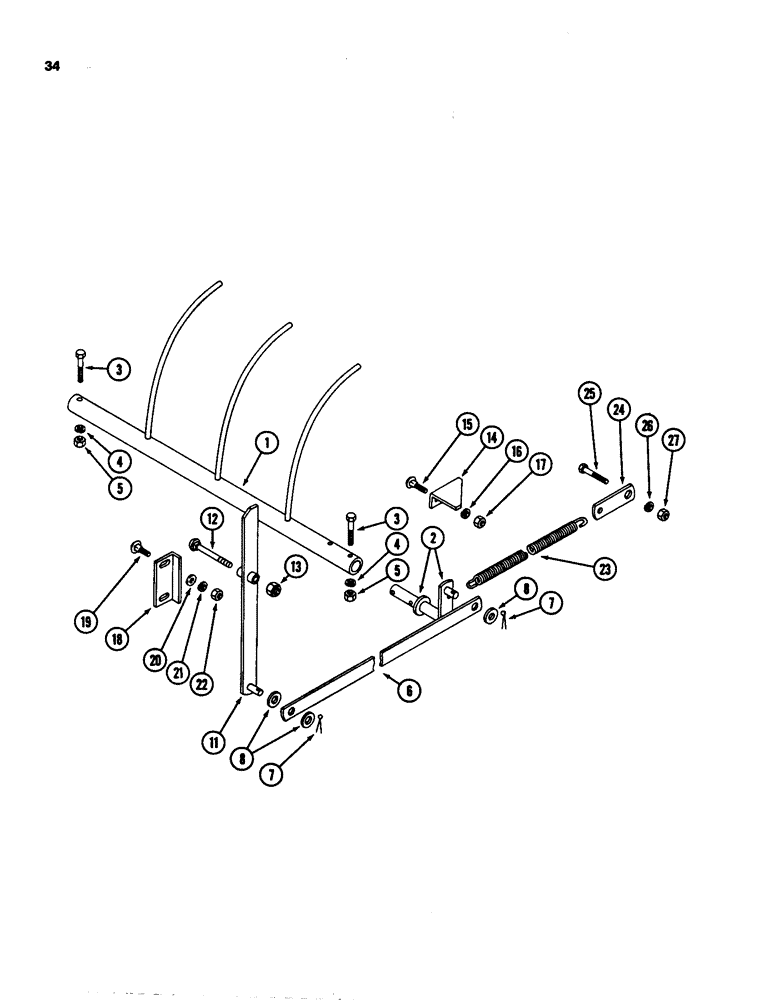

Схема запчастей Case IH 3640 - (34) - TRIP GATE ATTACHMENT

Артикул

Название

Примечание

Количество

ZA4850003

GATE ATTACHMENT - trip (Machinery Item, order 0101042)

1шт.

1

ZA105896

GUIDE

GATE ASSEMBLY - trip, 3 tine

1шт.

2

ZA105536

SHAFT

ASSEMBLY - stub

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

3шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

120377

NUT,3/8" - 16, Gr 5

3шт.

6

ZA105533

STRAP

- linkage

1шт.

7

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

3шт.

11

ZA105531

LEVER

ARM - trip

1шт.

12

26224R1

BOLT,Short NK, 5/8"-11 x 5", G5

- round head square neck, 5/8 NC x 5 inch

1шт.

13

9413960

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

14

ZA105546

BRACKET

- stop

1шт.

15

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

16

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

120376

NUT,5/16"-18, G5

2шт.

18

ZA105537

ANGLE

BRACKET - trip arm

1шт.

19

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

20

21403R1

WASHER

- flat 13/32 x 1 x 1/8 inch (10 x 25 x 3 mm)

2шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

120377

NUT,3/8" - 16, Gr 5

2шт.

23

97767C1

SPRING

- extension

1шт.

24

ZA105547

ANCHOR

STRAP - anchor, spring

1шт.

25

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - hex, 3/8 NC x 1-1/4 inch

1шт.

26

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

120377

NUT,3/8" - 16, Gr 5

1шт.

Выбрано товаров: 26
