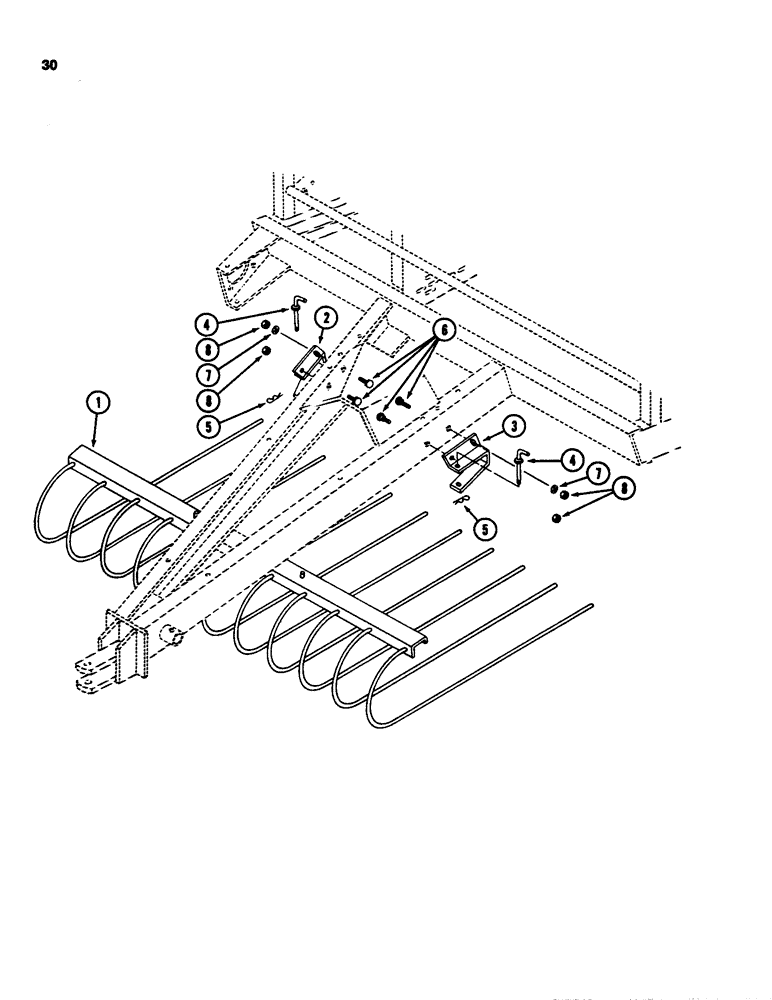

Запчасти Case IH 3640 (30) - WINDGUARD

1

ZA105973

FRAME

- windguard

1шт.

2

ZA104921

BRACKET

- windguard, right

1шт.

3

ZA104922

BRACKET

- windguard, left

1шт.

4

ZA104749

PIN

- windguard

2шт.

5

407211R1

CLIP

PIN - hair (Package of 20)

2шт.

6

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch, Grade 1

4шт.

7

25710R1

WASHER

- flat, hardened

2шт.

8

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
