Запчасти Case IH 3640 (28) - MAIN FRAME HOUSING

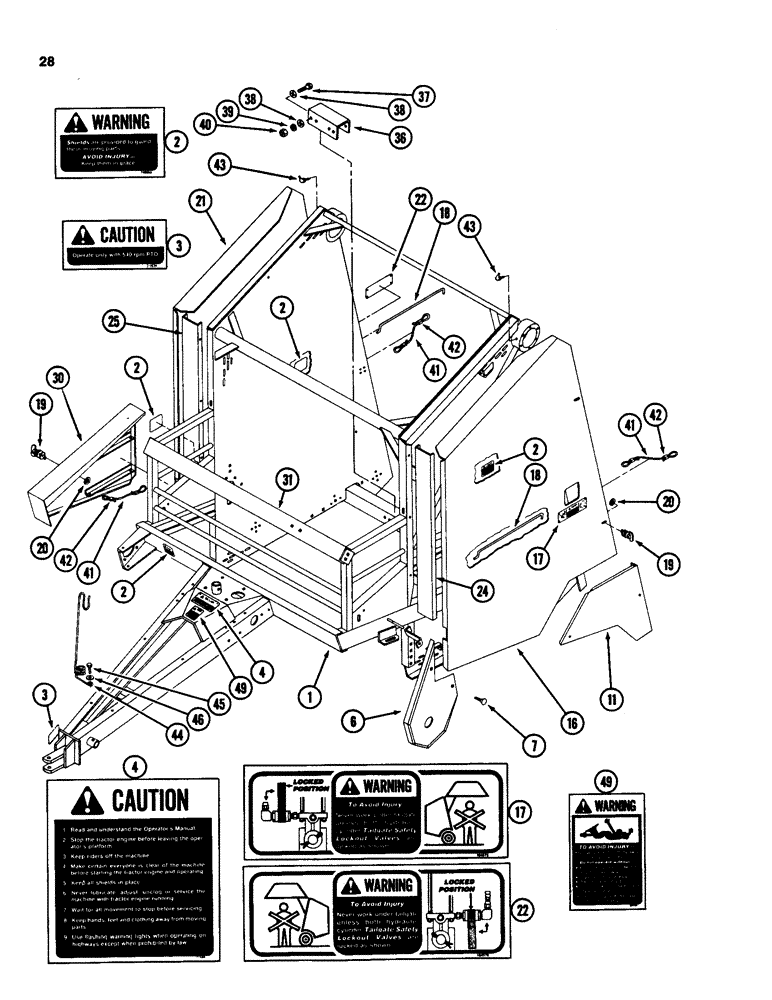

Схема запчастей Case IH 3640 - (28) - MAIN FRAME HOUSING

Артикул

Название

Примечание

Количество

1

ZA105950

HOUSING

- main frame

1шт.

2

REF

INSTRUCTION

DECAL - warning, keep shields in place (See Page 69)

4шт.

3

REF

INSTRUCTION

DECAL - caution, 540 rpm PTO (See Page 69)

1шт.

4

REF

INSTRUCTION

DECAL - caution, rules for safe operation (See Page 71)

1шт.

6

ZA104475

SHIELD

- pickup drive

1шт.

7

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

3шт.

11

ZA105141

SHIELD

- lower side, left

1шт.

16

ZA103650

SHIELD

- side, left

1шт.

17

REF

INSTRUCTION

DECAL - warning, tailgate safety lockout valve, left (See Page 69)

1шт.

18

ZA103822

ROD

- retaining

2шт.

19

ZA103138

FASTENER

- shield

5шт.

20

ZA103937

WASHER

- retaining

10шт.

21

ZA103651

SHIELD

- side, right

1шт.

22

REF

INSTRUCTION

DECAL - warning tailgate safety lockout valve, right (See Page 69)

1шт.

24

ZA105833

SHIELD

- front, left

1шт.

25

ZA105849

SHIELD

- front, right

1шт.

30

ZA104346

SHIELD

- drive

1шт.

31

ZA105888

CHANNEL

- support, twine box

1шт.

36

ZA105351

CHANNEL

- axle splice

1шт.

37

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

38

25710R1

WASHER

- flat, hardened

16шт.

39

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

40

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

41

ZA104429

CABLE

- shield

3шт.

42

96326C1

SLEEVE

- cable

6шт.

43

16964R91

FITTING

- grease, 1/4 inch, 90 degree

2шт.

44

ZA103986

HOLDER

- hose

1шт.

45

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

46

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch (13 x 38 x 3 mm)

1шт.

49

REF

INSTRUCTION

DECAL - warning, rotating drive lines (See Page 69)

1шт.

Выбрано товаров: 30
