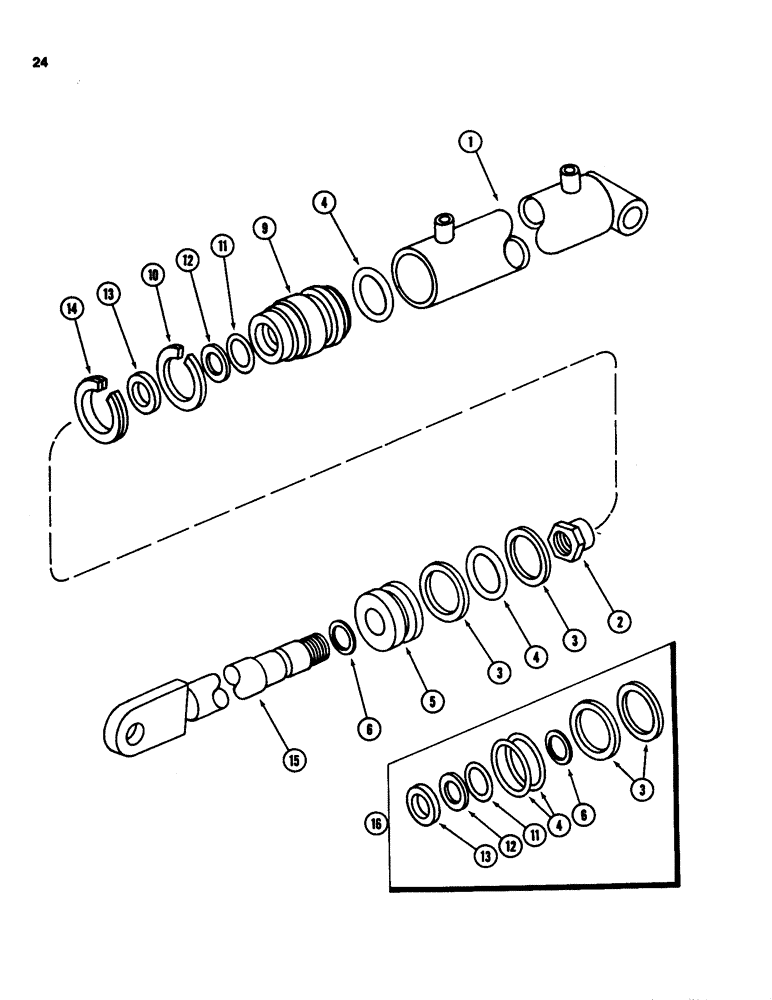

Запчасти Case IH 3640 (24) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8 INCH (203MM) STROKE

ZA103959

CYLINDER

ASSEMBLY - twine tube (KMW)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order ZA103959)

1шт.

2

1958264C1

NUT

- hex lock, 1/2 inch NF

1шт.

3

NSS

NOT SOLD SEPARAT

BACKUP - piston O-ring

2шт.

Part of seal kit P/N ZA516462

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - piston and head

2шт.

Part of seal kit P/N ZA516462

1шт.

5

ZA516460

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

9

ZA516455

HEAD

- cylinder

1шт.

10

ZA516457

RING

- retaining

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP - piston rod O-ring

1шт.

Part of seal kit P/N ZA516462

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

14

ZA513458

RING - retaining

1шт.

15

ZA104015

SHAFT

ROD ASSEMBLY - piston

1шт.

16

ZA516462

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 11, 12, and 13

1шт.
