Запчасти Case IH 3640 (22) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8 INCH (203MM) STROKE

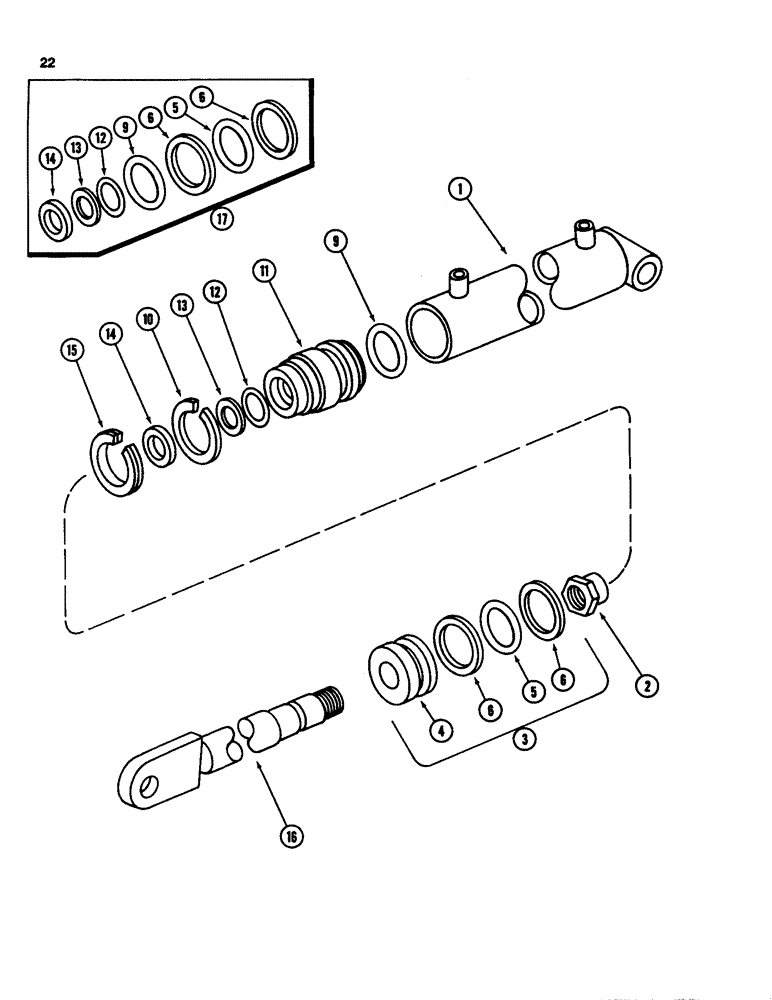

Схема запчастей Case IH 3640 - (22) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8 INCH (203MM) STROKE

Артикул

Название

Примечание

Количество

ZA105804

CYLINDER

ASSEMBLY - twine tube (Cross No. 028052 stamped on body)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order ZA105804)

1шт.

2

ZA105810

NUT

- hex lock, 5/8 inch NF

1шт.

3

ZA720106

PISTON

ASSEMBLY - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order ZA720106)

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston and head

1шт.

Part of seal kit P/N ZA105811

1шт.

6

NSS

NOT SOLD SEPARAT

BACKUP - piston O-ring

2шт.

Part of seal kit P/N ZA105811

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston and head

1шт.

Part of seal kit P/N ZA105811

1шт.

10

ZA105807

RING

- retaining

1шт.

11

ZA105805

HEAD

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA105811

1шт.

13

NSS

NOT SOLD SEPARAT

BACKUP - piston rod O-ring

1шт.

Part of seal kit P/N ZA105811

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N ZA105811

1шт.

15

ZA105806

NUT

- retaining, cylinder head

1шт.

16

ZA105808

SHAFT

ROD ASSEMBLY - piston

1шт.

17

ZA105811

SEAL

- seal, Includes: Ref. 5, 6, 9, 12, 13, 14

1шт.

Выбрано товаров: 22
