Запчасти Case IH 3640 (18) - TAILGATE HYDRAULIC CYLINDER, 2 INCH (51 MM) BORE X 16 INCH (406MM) STROKE

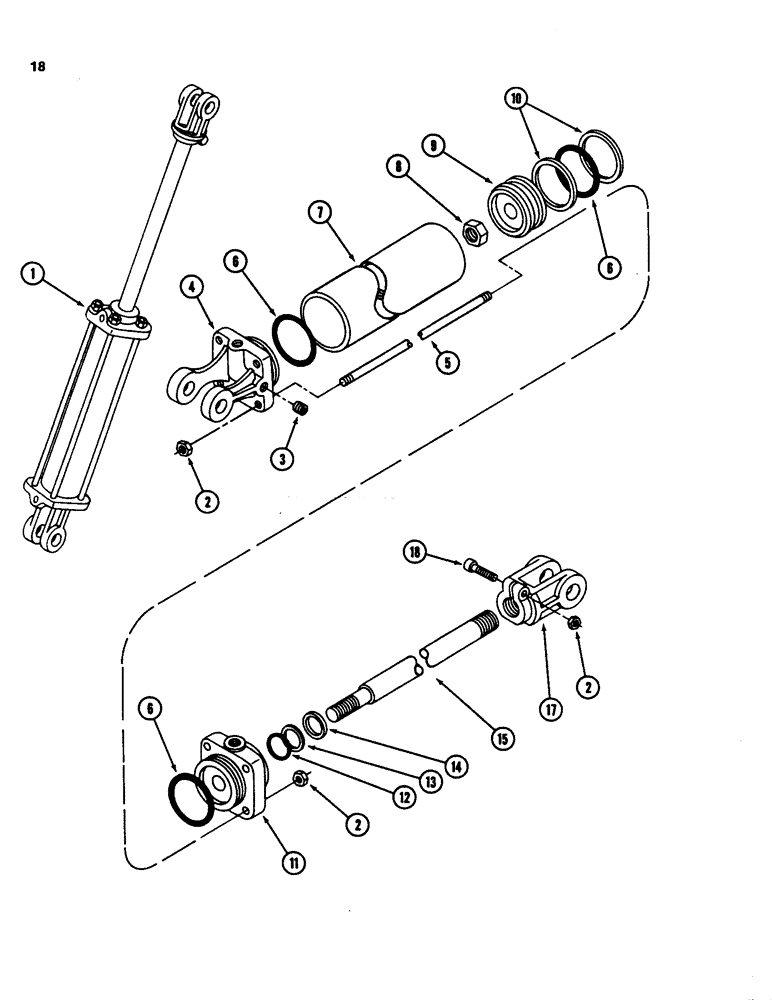

Схема запчастей Case IH 3640 - (18) - TAILGATE HYDRAULIC CYLINDER, 2 INCH (51 MM) BORE X 16 INCH (406MM) STROKE

Артикул

Название

Примечание

Количество

1

ZA105000

CYLINDER

ASSEMBLY - hydraulic, tailgate

2шт.

2

120377

NUT,3/8" - 16, Gr 5

9шт.

3

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, square socket, 3/8 inch PT

1шт.

4

ZA207021

BASE

- cylinder

1шт.

5

ZA105147

ROD

- tie

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cylinder

3шт.

Part of seal kit P/N ZA207009

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder - (Order ZA105000)

1шт.

8

9413971

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

1шт.

9

851022C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP - piston O-ring

2шт.

Part of seal kit P/N ZA207009

1шт.

11

ZA207015

HEAD

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA207009

1шт.

13

NSS

NOT SOLD SEPARAT

BACKUP - piston rod O-ring

1шт.

Part of seal kit P/N ZA207009

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N ZA207009

1шт.

15

ZA105146

ROD

- piston

1шт.

17

ZA207012

CLEVIS

- piston rod

1шт.

18

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket head, 3/8 NC x 1-3/4 inch

1шт.

ZA207009

KIT

- seal, Includes: Ref. 6, 10, 12, 13 and 14

1шт.

Выбрано товаров: 23
