Запчасти Case IH 3640 (16) - TAILGATE HYDRAULICS AND LATCH

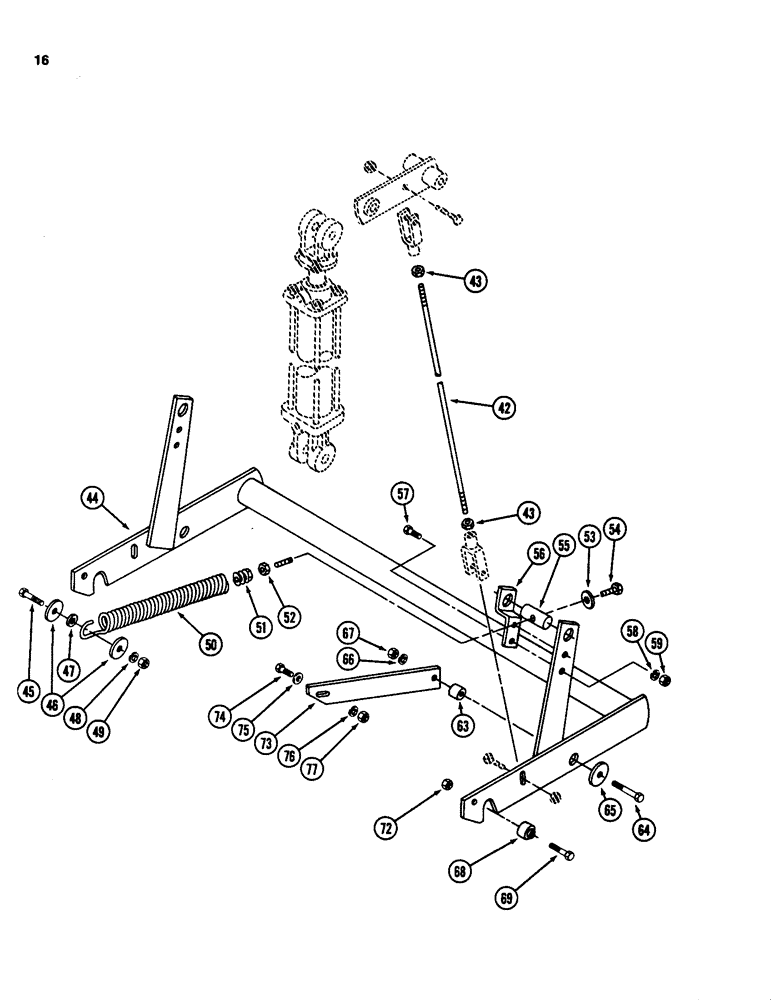

Схема запчастей Case IH 3640 - (16) - TAILGATE HYDRAULICS AND LATCH

Артикул

Название

Примечание

Количество

42

ZA105132

ROD

- latch

2шт.

43

120371

NUT,1/2"-20, G5

4шт.

44

ZA105971

LATCH

ASSEMBLY - tailgate

1шт.

45

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

46

21883R1

WASHER

- flat, 17/32 x 1-3/4 x 3/32 inch (13 x 44 x 2 mm)

4шт.

47

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

8шт.

48

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

49

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

50

ZA761370

SPRING

ASSEMBLY - extension

2шт.

51

1281009C1

INSERT

- spring

1шт.

52

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

53

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch (13 x 32 x 3 mm)

2шт.

54

Q822

BOLT

- hex, 1/2 NC x 5-1/2 inch

2шт.

55

ZA104551

PIN

- clevis

2шт.

56

ZA105060

CLIP

BRACKET - offset

2шт.

57

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

58

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

59

120377

NUT,3/8" - 16, Gr 5

4шт.

63

1337296C1

SPACER

- 21/32 ID x 1-1/16 inch (17 x 27 mm)

2шт.

64

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

2шт.

65

23276R1

WASHER

- flat, 21/32 x 2 x 5/32 inch (17 x 51 x 4 mm)

2шт.

66

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

67

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

68

96339C1

CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"

FOLLOWER - cam, crowned

2шт.

69

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

72

359783C1

LOCK NUT

- hex lock, 3/8 inch NC, Grade 8

2шт.

73

ZA105108

BAR

STIFFENER - latch

2шт.

74

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/25 NC x 1-1/4 inch

2шт.

75

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

2шт.

76

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

77

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Выбрано товаров: 31
