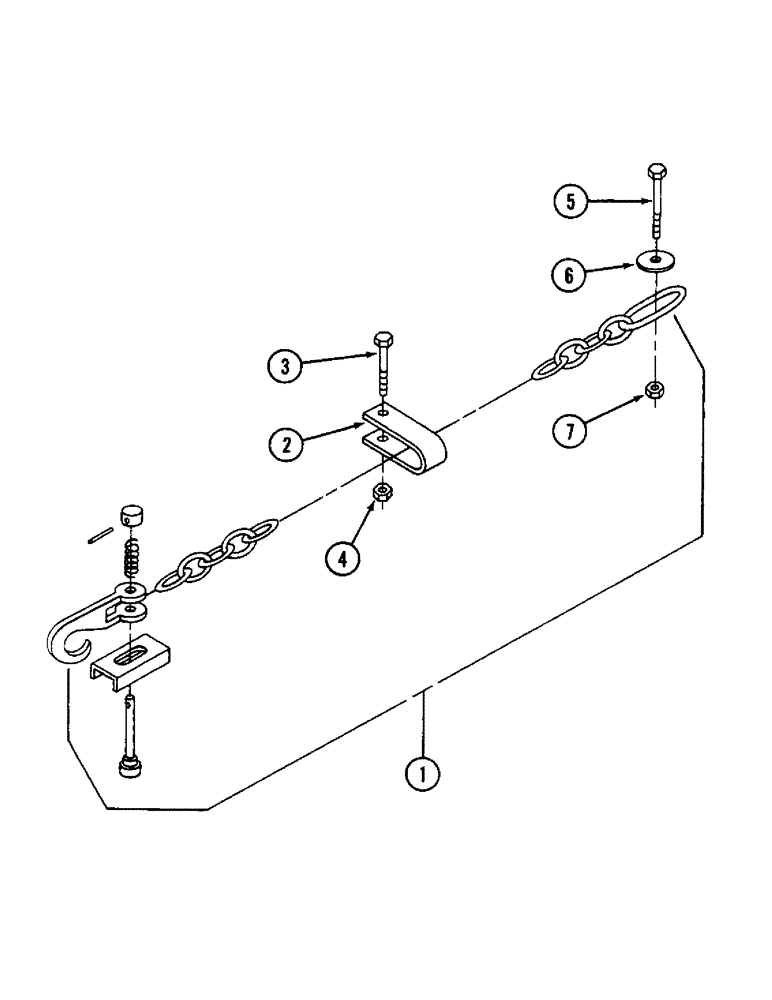

Запчасти Case IH 3450 (82) - SAFETY CHAIN

1

100682C3

CHAIN (AG)

CHAIN - safety

1шт.

2

148558C1

CLEVIS

- safety chain (Replaces S9173A)

1шт.

61913C92

PACKAGE

KIT - safety chain hardware

1шт.

3

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

1шт.

4

19508R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

5

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

- hex, 3/4 x 2-3/4 inch

1шт.

6

26512R1

WASHER

- flat, 25/32 x 2 x 11/64 inch (19 x 50 x 4 mm)

1шт.

7

18444R1

NUT,3/4"-10, GB

- hex lock, 3/4 inch NC

1шт.
