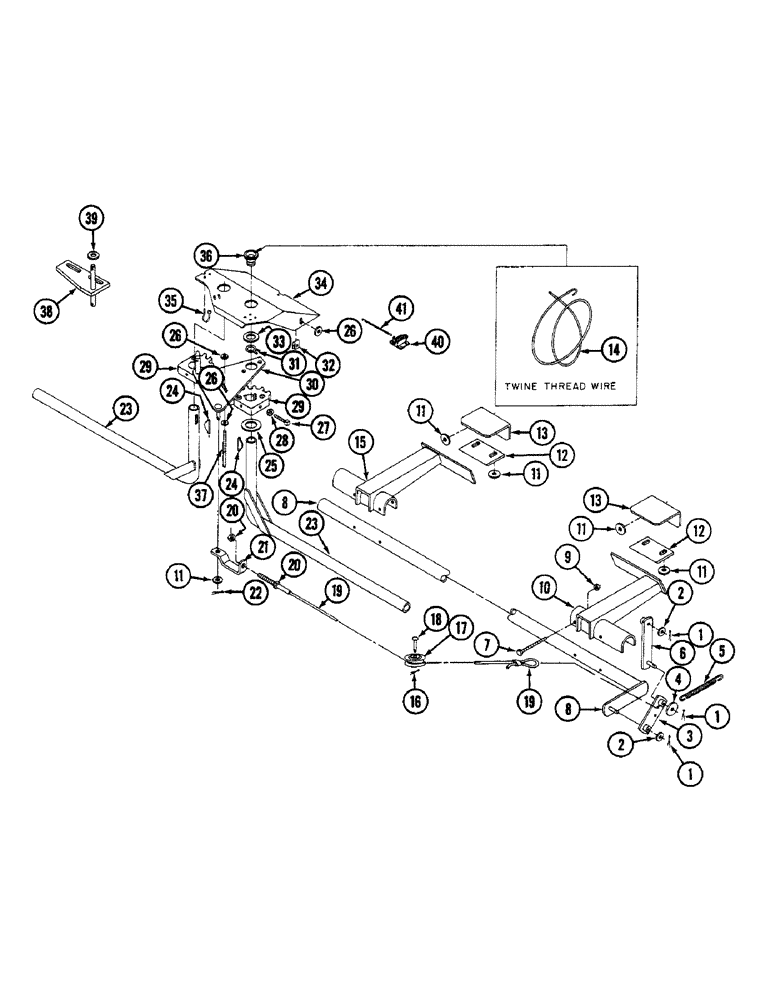

Запчасти Case IH 3450 (78) - ELECTRIC TWINE TIE AND CUT-OFF

1

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

2

21883R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm)

2шт.

3

ZA105518

STRAP

- bottom

1шт.

4

22042R1

WASHER

- flat, 17/32 x 2 x 1/8 inch (13 x 25 x 3 mm)

1шт.

5

1281008C1

SPRING

- extension

1шт.

6

ZA105516

STRAP

- top

1шт.

7

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

4шт.

8

ZA104890

PIPE

1шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 NC Type 8

4шт.

10

ZA104837

STOP

CUT OFF - left

1шт.

11

118775

WASHER,3/8" x 13/16" x .065"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

5шт.

12

ZA104892

KNIFE

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 x 1-1/4 Type 1

4шт.

13

ZA104862

HOLDER

- twine

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

14

ZA104769

ELECTRICAL WIRE

WIRE - twine thread (Replaces ZA104628)

1шт.

15

ZA104836

STOP

CUT OFF - right

1шт.

16

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

17

ZA206636

PULLEY

1шт.

18

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

1шт.

19

ZA105513

CABLE

1шт.

20

120377

NUT,3/8" - 16, Gr 5

- hex, 5/16 inch NC

2шт.

21

ZA104703

ANCHOR

- cable

1шт.

22

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23

ZA104753

TUBE

2шт.

24

96317C1

KEY

- hi pro, 1/4 x 1-1/8 inch

2шт.

25

20885R1

WASHER

- flat, 1-5/32 x 2 x 1/16 inch (29 x 50 x 1 mm)

2шт.

26

611344R1

WASHER

- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm)

4шт.

27

21407R1

SCREW

- square head cup point set, 3/8 NC x 1-1/4 inch

4шт.

28

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

29

ZA104729

GEAR

- 6 teeth

2шт.

30

ZA105646

PLATE

- pivot (Replaces ZA104758)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

31

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, No. 10 Type F

2шт.

32

488837C1

SPRING NUT

- speed

2шт.

33

591715R1

WASHER

- flat, 1-1/32 x 1-5/8 x 1/16 inch (26 x 41 x 1 mm)

4шт.

34

ZA104861

SHIELD

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

35

533959R1

CABLE TIE,.135" x 11"

TIE - hose

1шт.

36

ZA104633

GUIDE

2шт.

37

489377R1

STUD - 5/16 NC x 4 inch

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (8 x 17 x 1 mm)

2шт.

120376

NUT,5/16"-18, G5

2шт.

38

ZA105769

BRACKET

- actuator

1шт.

39

25710R1

WASHER

- flat hardened, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm)

1шт.

40

REF

INSTRUCTION

COUNTER - bale (See Page 81)

1шт.

41

495525R1

SPRING

1шт.
