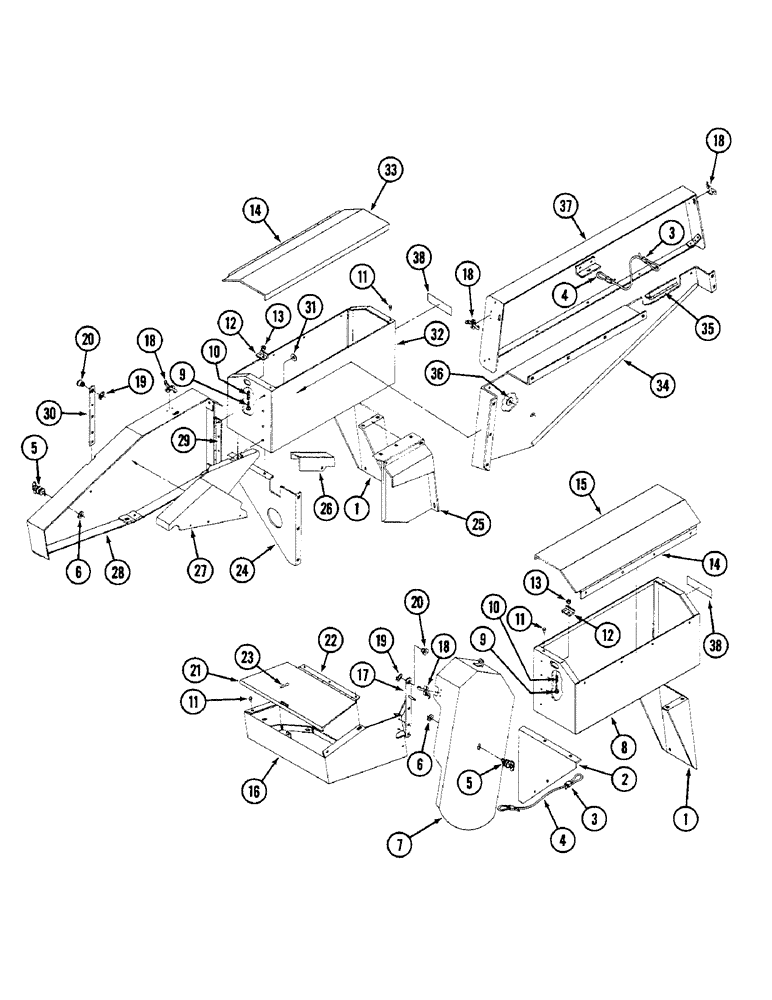

Запчасти Case IH 3450 (76) - TWINE CHEST SHIELDS

1

ZA104699

SUPPORT

- rear box

2шт.

2

ZA104966

SUPPORT

- left

1шт.

3

96326C1

SLEEVE

4шт.

4

ZA104429

CABLE

2шт.

5

ZA103138

FASTENER

2шт.

6

ZA103937

WASHER

- retainer

4шт.

7

ZA104925

SHIELD

- pick-up drive

1шт.

8

ZA104935

BOX

- twine left

1шт.

9

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT - hex, 1/4 NC x 1-3/4 inch

1шт.

10

96314C1

SPRING

4шт.

11

ZA104611

PLUG

- rubber

6шт.

12

ZA104859

BRACKET

TENSIONER - twine

2шт.

13

9413950

LOCK NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

14

ZA703189

HINGE

2шт.

15

ZA104938

DOOR

- left

1шт.

16

ZA104787

BOX

- tool

1шт.

17

ZA105521

GUIDE

- twine

1шт.

18

ZA762975

CLAMP

4шт.

19

324733R1

CLAMP,#16, 1", Spring

- spring wire hose, No. 16 Type E

2шт.

20

ZA104633

GUIDE

2шт.

21

ZA104794

DOOR

1шт.

22

ZA104793

HINGE

1шт.

23

407211R1

CLIP

- pin

1шт.

24

ZA104965

SUPPORT

- right

1шт.

25

ZA104951

SHIELD

- floor drive

1шт.

26

ZA104602

SHIELD

- idler

1шт.

27

ZA104805

SHIELD

- inner

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

28

ZA104945

SHIELD

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

29

ZA104944

HINGE

1шт.

30

ZA104882

GUIDE

BRACKET - twine guide

1шт.

31

106969R1

WASHER

- flat, 11/32 x 1-3/8 x 1/16 inch (8 x 34 x 1 mm)

4шт.

32

ZA104934

BOX

- twine right

1шт.

33

ZA104937

DOOR

- right

1шт.

34

ZA104819

SHIELD

- lower

1шт.

35

ZA104827

HINGE

1шт.

36

118775

WASHER,3/8" x 13/16" x .065"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

1шт.

37

ZA104797

SHIELD

- upper

1шт.

38

1284374C1

REFLECTOR,Reflector Red

- red

2шт.
