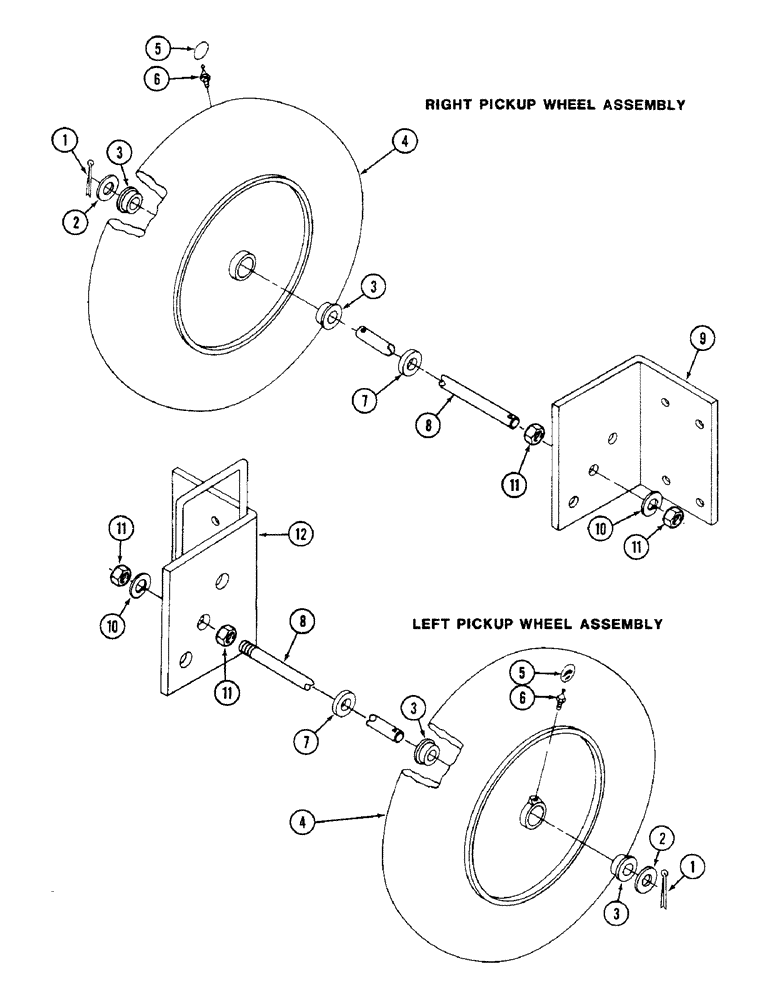

Запчасти Case IH 3450 (72) - LEFT AND RIGHT GAUGE WHEEL, P.I.N. 000801 THROUGH 001280

1

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

2

21753R1

WASHER

- flat, 21/32 x 1-1/2 x 1/16 inch (16 x 38 x 1 mm)

1шт.

3

ZA104825

BUSHING

(Replaces 202248C1)

2шт.

4

ZA104582

WHEEL

- for 4.80/4.00 - 4 ply tire

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL - grease (10 hours) (Order kit 1265869C93)

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

467750R1

WASHER

- flat, 25/32 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

1шт.

8

ZA104362

SPINDLE

1шт.

9

ZA105414

BRACKET

- wheel right (Replaces ZA104446)

1шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

11

280954

NUT,3/4"-10, G5

2шт.

12

ZA105412

BRACKET

- wheel left (Replaces ZA104470)

1шт.
