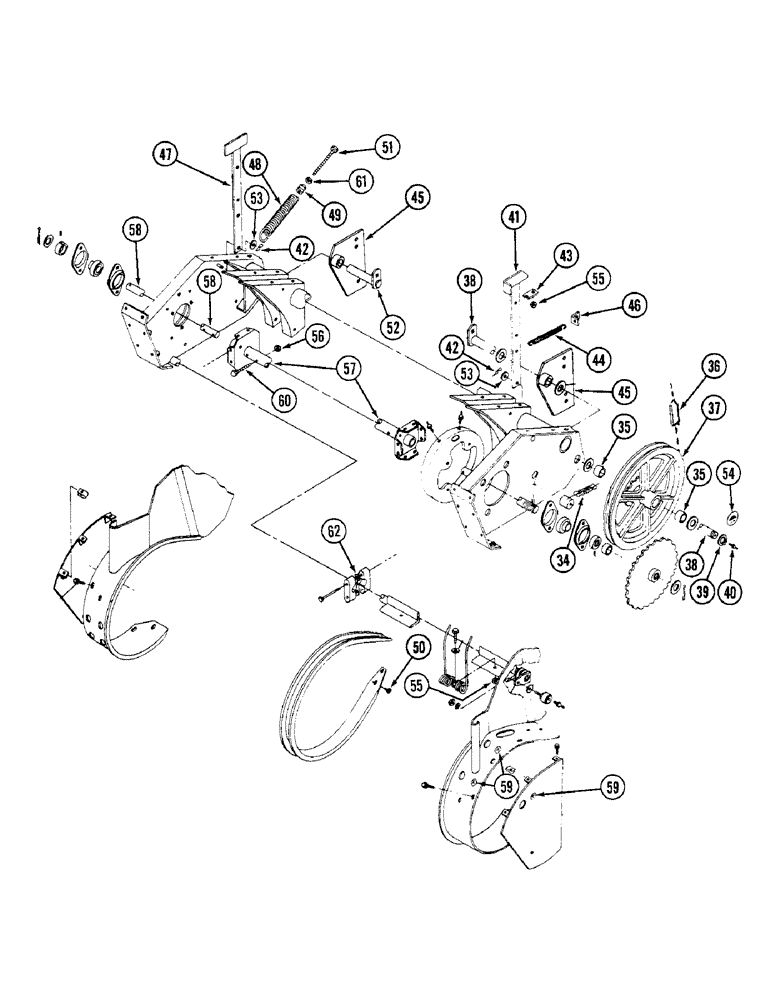

Запчасти Case IH 3450 (68) - PICKUP, P.I.N. 001281 AND AFTER

PICKUP (Continued from Page 67)

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY (Use 33 links from roll marked 569089R91 1 offset link 456929R91 and connecting link 587372R91) (For power reduction use 31 links)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3.048 m) roll

1шт.

456929R91

CHAIN LINK

LINK - offset

1шт.

587372R91

CONNECTING LINK

LINK - connecting

1шт.

35

1281010C1

BUSHING

2шт.

36

668902R1

BELT

- Speed up (Used with sheave ZA104645) (Interchangeable with ZA104774)

1шт.

36

ZA104774

BELT

- Slow down (Use with sheave ZA104842) (Interchangeable with 668902R1)

1шт.

37

ZA104375

PULLEY

SHEAVE AND SPROCKET ASSEMBLY

1шт.

38

ZA104443

SHAFT

- pivot left

1шт.

39

152450R1

SNAP RING,#125, Ext

RING - external retaining, 1/5-32 inch

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

41

ZA104464

STOP

- left

1шт.

42

407211R1

CLIP

PIN - clip

2шт.

43

ZA104413

LOCKING PLATE

- lock

1шт.

44

ZA290043

SPRING

- extension

1шт.

45

ZA104754

BRACKET

2шт.

46

ZA100457

ANGLE

CLIP - angle

1шт.

47

ZA104503

STOP

- right

1шт.

48

ZA762032

SPRING

1шт.

49

ZA761517

PLUG

- spring

1шт.

50

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 3/4 inch

84шт.

51

480556C1

BOLT,Spcl, 1/2" - 13 x 8"

- hex, 1/2 NC x 8 inch

1шт.

52

ZA104441

SHAFT

- pivot right

1шт.

53

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 3/32 inch (16 x 33 x 2 mm)

2шт.

54

NSS

NOT SOLD SEPARAT

DECAL - grease (10 hours) (Order kit 1265869C93)

1шт.

55

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

45шт.

56

9413956

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

57

ZA104203

REEL

- pickup

1шт.

58

ZA104224

SHAFT

- right

1шт.

59

NSS

NOT SOLD SEPARAT

DECAL - grease (50 hours) (Order kit 1265869C93)

1шт.

60

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

61

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

62

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

16шт.
