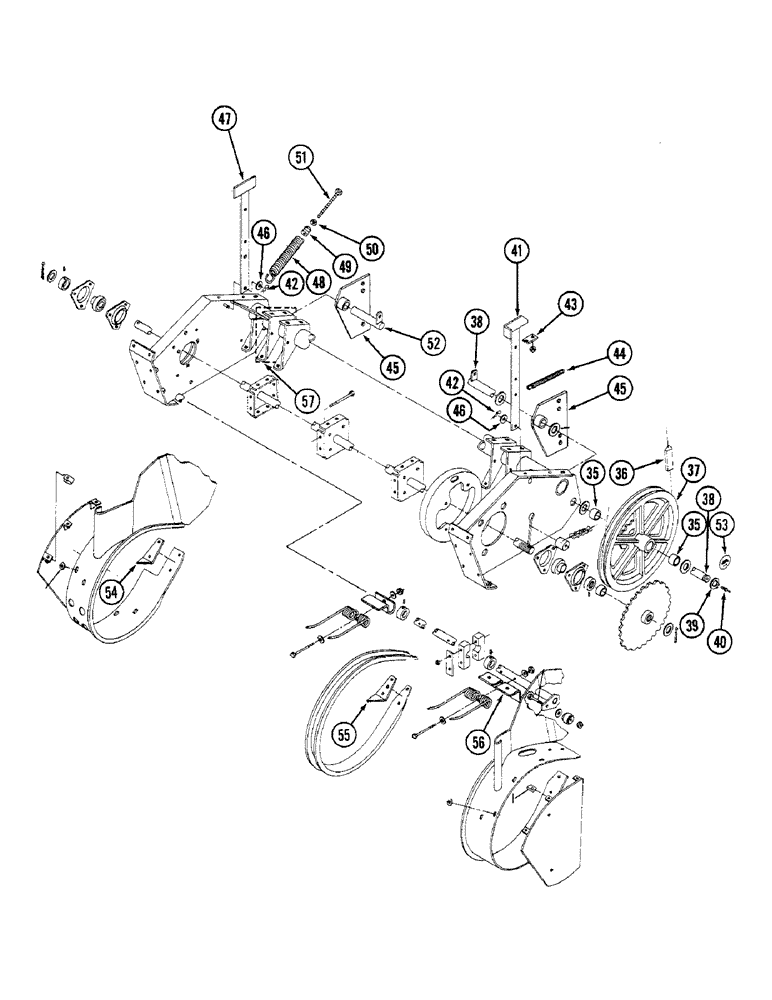

Запчасти Case IH 3450 (64) - PICKUP, PRIOR TO P.I.N. 001280

PICKUP (Continued from Page 63)

1шт.

35

1281010C1

BUSHING

2шт.

36

668902R1

BELT

- Speed up (Used with sheave ZA104645) (Interchangeable with ZA104774)

1шт.

36

ZA104774

BELT

- Slow down (Used with sheave ZA104842) (Interchangeable with 668902R1)

1шт.

37

ZA104375

PULLEY

SHEAVE AND SPROCKET ASSEMBLY

1шт.

38

ZA104443

SHAFT

- pivot left

1шт.

39

152450R1

SNAP RING,#125, Ext

RING - external retaining, 1-5/32 inch

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

41

ZA104464

STOP

- left

1шт.

42

407211R1

CLIP

PIN - clip

2шт.

43

ZA104413

LOCKING PLATE

- lock

1шт.

44

1281008C1

SPRING

- extension

1шт.

45

ZA104754

BRACKET

- pickup mounting

2шт.

46

131016

WASHER

- flat, 21/32 x 1-5/16 x 3/32 inch (16 x 33 x 2 mm)

2шт.

47

ZA104503

STOP

- right

1шт.

48

ZA762032

SPRING

1шт.

49

ZA761517

PLUG

- spring

1шт.

50

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

51

480556C1

BOLT,Spcl, 1/2" - 13 x 8"

- hex, 1/2 NC x 8 inch

1шт.

52

ZA104441

SHAFT

- pivot right

1шт.

53

NSS

NOT SOLD SEPARAT

DECAL, GREASE (10 hours) (Order kit 1265869C93)

1шт.

54

ZA103666

DIVIDER

TOOTH DIVIDER - long

20шт.

55

ZA103667

DIVIDER

TOOTH DIVIDER - short

3шт.

56

ZA103715

ANGLE

- tooth support

8шт.

57

ZA104545

BRACKET

ASSEMBLY

1шт.
