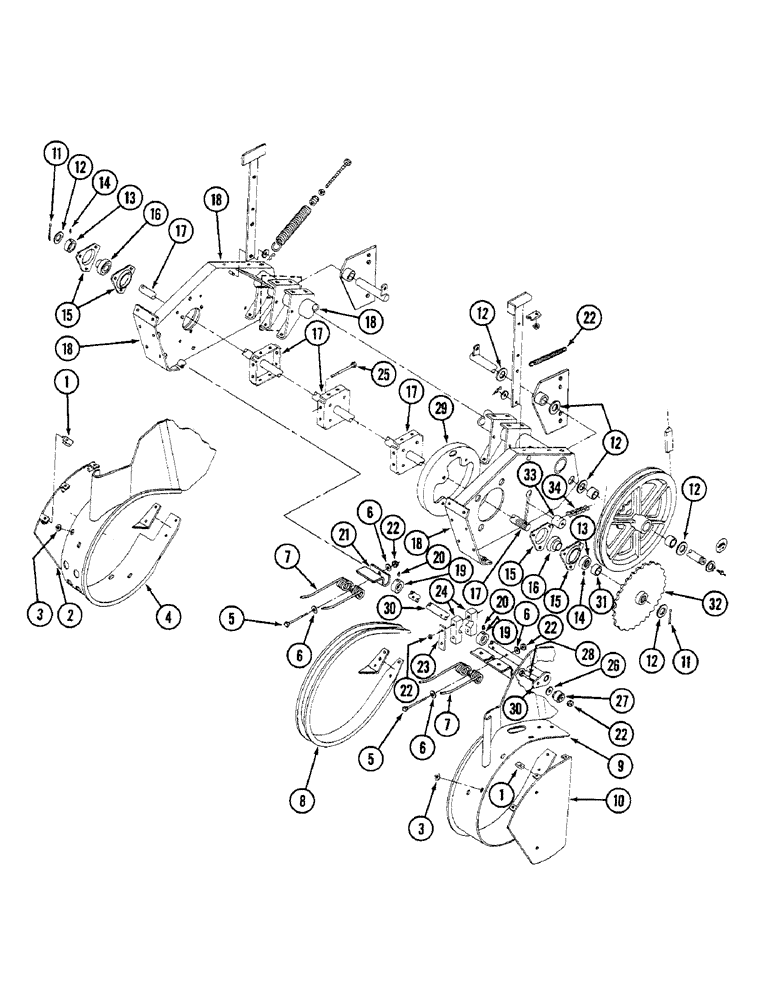

Запчасти Case IH 3450 (62) - PICKUP, PRIOR TO P.I.N. 001280

1

488837C1

SPRING NUT

- speed, 5/16 inch

8шт.

2

ZA104585

FILLER

- right

1шт.

3

102393

WASHER

- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm)

12шт.

4

ZA104276

BAND

- end right

1шт.

5

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

44шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

44шт.

6

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

44шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

7

ZA103012

TOOTH

FINGER - spring

44шт.

8

ZA105424

TINE BAR

BAND (Replaces ZA104257)

21шт.

9

ZA104277

BAND

- end left

1шт.

10

ZA104584

FILLER

- left

1шт.

11

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

12

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 1/16 inch (32 x 44 x 1 mm)

1шт.

13

557995R11

COLLAR

- locking

2шт.

14

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - Allen head cup point set, 5/16 NC x 5/16 inch

2шт.

15

662649R1

RETAINER

HOUSING - bearing

4шт.

16

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- 1-1/4 inch ID (31 mm)

2шт.

17

ZA103775

REEL

- pickup

1шт.

18

ZA103757

FRAME

- pickup

1шт.

19

517645R11

COLLAR

- with set screw, locking

8шт.

20

102892

SET SCREW

- square head cup point set, 3/8 NC x 1/2 inch

8шт.

21

ZA105148

CLAMP

- spring finger

4шт.

22

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

23

ZA718159

PLATE

- bearing

12шт.

24

ZA761580

CAP

- bearing half (Center and right end of reel)

16шт.

24

ZA105582

BEARING HALF,1"

CAP - bearing half (Left end of reel)

8шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

25

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

24шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

26

390305C1

WASHER

- flat hardened, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

4шт.

27

96339C1

CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"

- cam follower (Replaces ZA015882)

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

28

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

29

ZA105772

CAM

- pickup (Replaces ZA760048)

1шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

28шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

30

ZA105526

BAR

- pickup

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

31

298274R1

BUSHING

SPACER - tube (Replaces 614614R1)

1шт.

32

ZA761609

SPROCKET ASSY.

SPROCKET - 20 teeth (Standard)

1шт.

32

ZA105596

SPROCKET ASSY.

SPROCKET - 15 teeth (Power reduction)

1шт.

33

ZA712225

SLIDE

- chain

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY (Use 33 links from roll marked 569089R91 1 offset link, 456929R91 and 1 connecting link 587372R91) (For power reduction use 31 links)

1шт.

456929R91

CHAIN LINK

LINK - offset

1шт.

587372R91

CONNECTING LINK

LINK - connecting

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3.048 m) roll

1шт.

ZA105428

KIT

- pickup service, Includes: ref. nos. 6, 22, 24, 25, 27, 28, 29, 30, P/N 109454

1шт.
