Запчасти Case IH 3450 (54) - BELTS & ROLLER ASSYS 7 - 10, MACHINES W/ 1.378" (35 MM) ID BEARINGS, PRIOR TO P.I.N. 001280

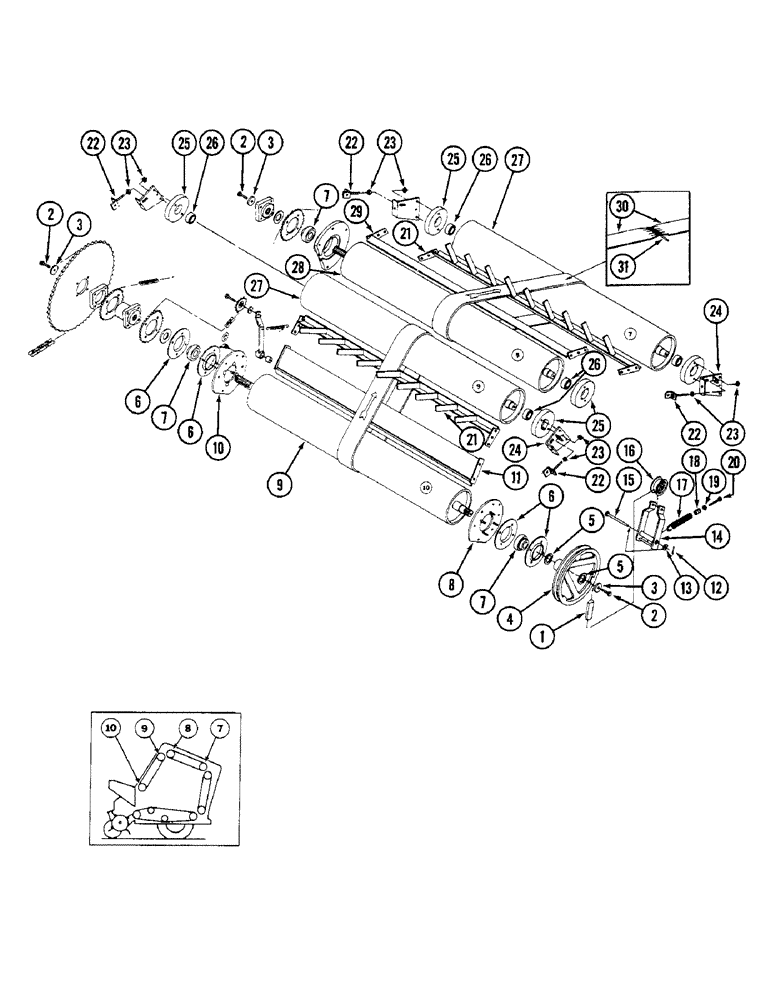

Схема запчастей Case IH 3450 - (54) - BELTS & ROLLER ASSYS 7 - 10, MACHINES W/ 1.378" (35 MM) ID BEARINGS, PRIOR TO P.I.N. 001280

Артикул

Название

Примечание

Количество

1

668902R1

BELT

- Speed up (Used with sheave ZA104645) (Interchangeable with ZA104774)

1шт.

1

ZA104774

BELT

- Slow speed (Used with sheave ZA104842) (Interchangeable with 668902R1)

1шт.

2

27908R1

BOLT,1/2" x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch type 8

3шт.

3

351107R1

WASHER

- flat, 17/32 x 2 x 1/4 inch (13 x 50 x 6 mm)

3шт.

4

ZA104645

PULLEY

SHEAVE - speed up (Used with belt 668902R1) (Interchangeable with ZA104842)

1шт.

REF 4: ZA 104645 IS 10 3/8" O.D.

1шт.

4

ZA104842

PULLEY

SHEAVE - slow down (Used with belt ZA104774) (Interchangeable with ZA104645)

1шт.

ZA104842 IS 9" O.D. 2/24 BW

1шт.

5

22051R1

WASHER

- flat, 1-17/32 x 2-1/4 x 1/16 inch (30 x 57 x 1 mm)

1шт.

6

663562R1

FLANGE

HOUSING - bearing

4шт.

7

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- 1.5753 inch ID (40 mm)

3шт.

8

ZA104824

PLATE

- left

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

9

ZA104736

ROLLER

- pivot (No. 10)

1шт.

10

ZA104823

PLATE

- right

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

11

ZA104939

STRIPPER

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

13

27342R1

WASHER

WASHER - flat, 17/32 x 1 x 1/16 inch (13 x 25 x 1 mm)

1шт.

14

ZA104215

ARM

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

15

21993R1

SPLIT PIN/SAFETY PIN

PIN - headed, 1/2 x 3-1/2 inch

1шт.

1

ZA103001

PULLEY

ILDER - belt

1шт.

17

ZA271276

SPRING

1шт.

18

ZA201085

INSERT

- lift spring

1шт.

19

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

1шт.

21

ZA104976

DIVIDER

(For 4-3/4 inch wide belts) (Prior to P.I.N. 000800)

2шт.

21

ZA105548

DIVIDER

(For 11 inch wide belts) (P.I.N. 000801 and after)

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

8шт.

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch (10 x 24 x 3 mm)

4шт.

22

ZA104982

CLIP

- angle

4шт.

23

120377

NUT,3/8" - 16, Gr 5

8шт.

24

ZA104987

BRACKET

TIGHTENER - left

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

25

ZA104600

COLLAR

- bearing

5шт.

26

1415467R91

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

- 1.378 inch ID (35 mm)

5шт.

27

ZA104555

ROLLER

- idler (No. 7 and 9)

2шт.

28

ZA104735

ROLLER

- drive (No. 8)

1шт.

29

ZA104975

STRIPPER

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

30

ZA104107

BELT

- Top (4-3/4 inch wide) (Prior to P.I.N. 000800)

20шт.

30

ZA105003

BELT

- Top (11 inch wide) (P.I.N. 000801 and after)

10шт.

31

ZA102971

PIN

(For 4-3/4 inch wide belt) (Prior to P.I.N. 000800)

20шт.

31

ZA102977

PIN

(For 11 inch wide belt) (P.I.N. 000801 and after)

10шт.

Выбрано товаров: 46
