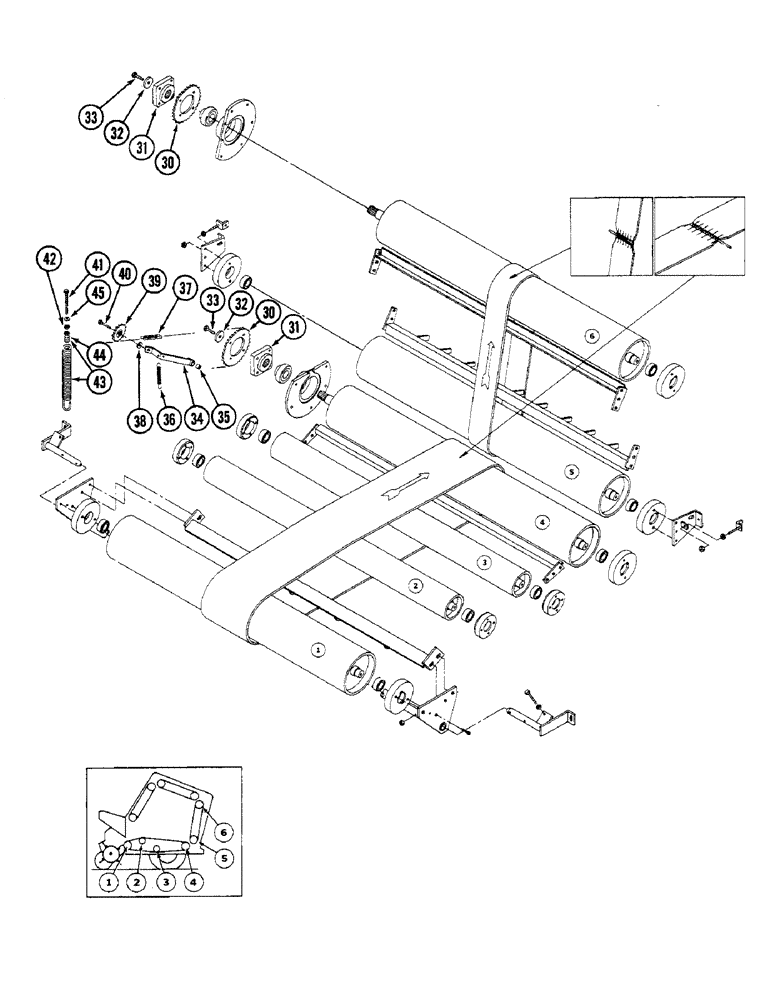

Запчасти Case IH 3450 (48) - BELTS & ROLLER ASSYS 1 - 6, MACHINES W/ 1.378" (35 MM) ID BEARINGS, PRIOR TO P.I.N. 001280, CONTD

BELTS AND ROLLER ASSEMBLIES 1 THRU 6 (Continued from Page 47)

1шт.

30

ZA104227

SPROCKET ASSY.

SPROCKET - 30 teeth

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

8шт.

31

ZA104593

HUB

2шт.

32

351107R1

WASHER

- flat

2шт.

33

27908R1

BOLT,1/2" x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch type 8

2шт.

34

ZA104649

ARM

1шт.

35

96315C1

BRONZE BUSHING

BUSHING

1шт.

36

1281008C1

SPRING

1шт.

37

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - (Use 151 links from roll marked 611362R91 and 1 connecting link 574532R91)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot (3.048 m) roll

1шт.

574532R91

CLIP, SPRING

LINK - connecting

1шт.

38

67872C1

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch (16 x 31 x 6 mm)

1шт.

39

541857R92

SPROCKET,15T

IDLER ASSEMBLY - 15 teeth

1шт.

40

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

41

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

42

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

43

ZA761370

SPRING

2шт.

44

1281009C1

INSERT

2шт.

45

120396

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm)

1шт.

208790C1

PACKAGE

KIT - belt repair (Box of lacing hooks)

1шт.

1254050C1

TOOL

LACER - belt (6 inch)

1шт.
