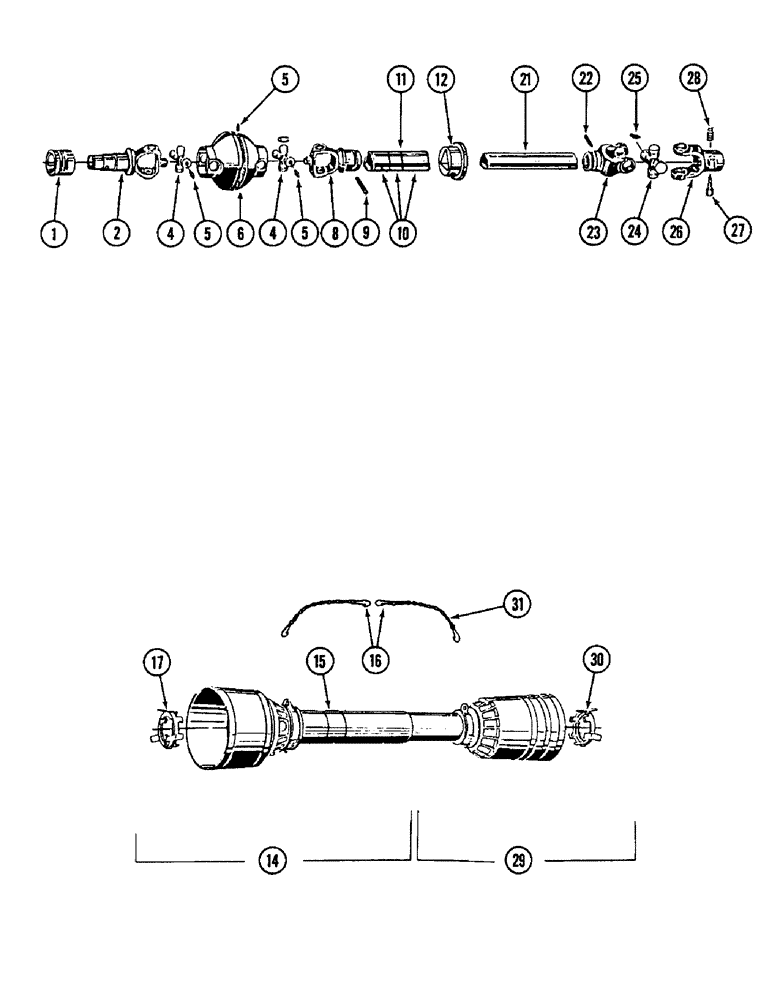

Запчасти Case IH 3450 (44) - POWER TAKE OFF DRIVE SHAFT, CONSTANT VELOCITY, BONDIOLI AND PAVESI, P.I.N. 001281 AND AFTER

ZA105873

JOINT

ASSEMBLY - constant velocity, tractor half (540 RPM)

1шт.

ZA105874

JOINT

ASSEMBLY - constant velocity, tractor half (1000 RPM)

1шт.

1

ZA210317

COLLAR

- slid

1шт.

2

ZA105851

YOKE

- 540 RPM

1шт.

2

ZA105852

YOKE

- 1000 RPM

1шт.

4

ZA105853

KIT

- cross

2шт.

5

ZA210321

NIPPLE, LUBE

FITTING - grease

3шт.

6

ZA105856

BODY

- central

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - inner (Order complete assembly)

1шт.

9

ZA105858

PIN

- roll

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - front (Order complete assembly)

1шт.

11

1326528C1

DECAL

- danger, shield missing

1шт.

12

ZA105855

RING

- grease

1шт.

14

ZA105868

SHIELD

ASSEMBLY

1шт.

15

96335C1

PRODUCT GRAPHIC

DECAL - warning

1шт.

16

ZA105864

CHAIN (AG)

CHAIN

1шт.

17

ZA105865

BEARING

1шт.

ZA105876

JOINT

ASSEMBLY - constant velocity, implement half

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE - rear (Order complete assembly)

1шт.

22

ZA105861

PIN

- roll

1шт.

23

NSS

NOT SOLD SEPARAT

YOKE - inner (Order complete assembly)

1шт.

24

ZA105879

KIT

- cross

1шт.

25

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

26

ZA105863

YOKE

- rear, quick disconnect

1шт.

27

ZA210331

PIN

KIT - push pin

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING (Order kit ZA210331)

1шт.

29

ZA105870

SHIELD

- rear

1шт.

30

ZA105866

BEARING

1шт.

31

ZA105864

CHAIN (AG)

CHAIN

1шт.
