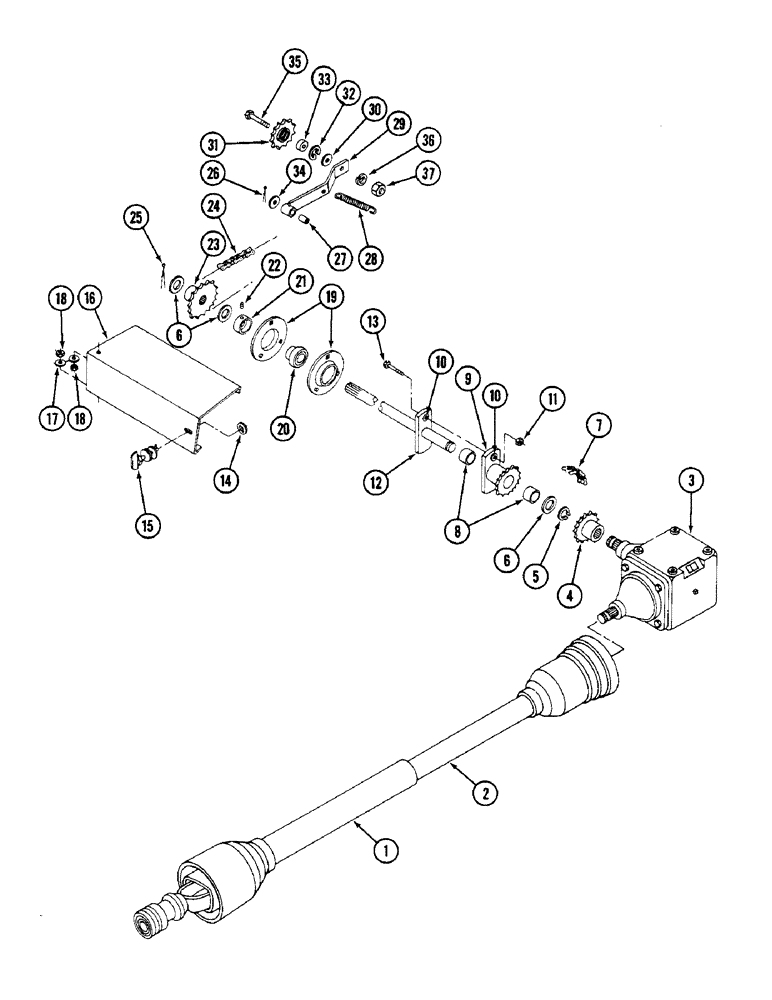

Запчасти Case IH 3450 (36) - POWER TAKE OFF DRIVE, P.I.N. 001281 AND AFTER

1

ZA105873

JOINT

ASSEMBLY - constant velocity, tractor half 540 RPM (Bondioli and Pavesi) (See Page 45)

1шт.

1

ZA105874

JOINT

ASSEMBLY - constant velocity, tractor half 1000 RPM (Bondioli and Pavesi) (See Page 45)

1шт.

2

ZA105876

JOINT

ASSEMBLY - constant velocity, implement half (Bondioli and Pavesi) (See Page 45)

1шт.

3

REF

INSTRUCTION

GEAR BOX (See Page 39)

1шт.

4

ZA105085

SPROCKET ASSY.

SPROCKET - 16 tooth

1шт.

5

1254030C1

RING

- retaining

1шт.

6

22051R1

WASHER

- flat, 1-17/32 x 2-1/2 x 3/64 inch (38 x 57 x 1 mm)

1шт.

7

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY (Use 15 links form roll 28363R1 and 1 connecting link 38361R1)

1шт.

28362R1

CHAIN - 10 foot (3.048 m) roll

1шт.

28361R1

LINK

- connecting

1шт.

8

96329C1

BUSHING

2шт.

9

ZA105088

SPROCKET ASSY.

SPROCKET - 16 teeth

1шт.

10

ZA301074

BUSHING

2шт.

11

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

1шт.

12

ZA104912

SHAFT

- cross

1шт.

13

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

14

ZA103937

WASHER

- retaining

2шт.

15

ZA103138

FASTENER

1шт.

16

ZA104705

SHIELD

1шт.

17

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 1/16 inch (8 x 31 x 1 mm)

2шт.

18

9412083

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

19

619333R1

FLANGED BEARING

HOUSING - bearing

2шт.

20

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

1шт.

21

664598R11

COLLAR

WITH SET SCREW

1шт.

22

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, hex socket headless cup point, 3/8 NF x 1 inch

1шт.

23

ZA104591

SPROCKET ASSY.

SPROCKET - 16 tooth

1шт.

24

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY (Use 99 links from roll 654437R91, 1 offset link 654439R91 and 1 connecting link 654438R91)

1шт.

654437R91

CHAIN (AG)

CHAIN - 10 foot (3.048 m) roll

1шт.

654438R91

LINK

- connecting

1шт.

654439R91

LINK

- offset

1шт.

25

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

26

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

27

96315C1

BRONZE BUSHING

BUSHING

1шт.

28

1281008C1

SPRING

1шт.

29

ZA104649

ARM

1шт.

30

67872C1

WASHER

1шт.

31

ZA740486

SPROCKET ASSY.

SPROCKET - 12 tooth

1шт.

32

1254031C1

RING

- retaining

1шт.

33

133214R91

BEARING LOCK NUT

BEARING

1шт.

34

446257

WASHER,3/4" x 1 3/4" x .148"

- flat, 13/16 x 1-3/4 x 1/8 inch (20 x 44 x 3 mm)

1шт.

35

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT - hex, 5/8 NC x 1-3/4 inch

1шт.

36

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.
