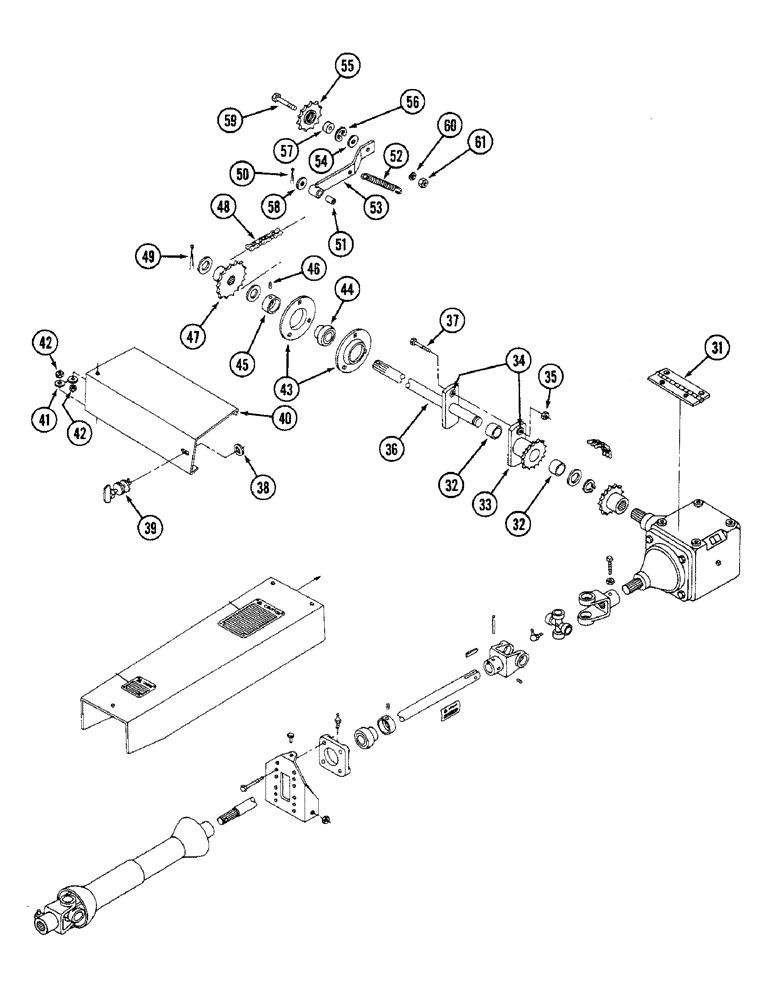

Запчасти Case IH 3450 (34) - POWER TAKE OFF DRIVE, PRIOR TO P.I.N. 001280

POWER TAKE OFF DRIVE (Continued from Page 33)

1шт.

31

ZA104325

HINGE

1шт.

32

96329C1

BUSHING

2шт.

33

ZA105088

SPROCKET ASSY.

SPROCKET - 16 teeth

1шт.

34

ZA301074

BUSHING

2шт.

35

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

1шт.

36

ZA104912

SHAFT

- cross

1шт.

37

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

38

ZA103937

WASHER

- retaining

2шт.

39

ZA103138

FASTENER

1шт.

40

ZA104705

SHIELD

1шт.

41

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 1/16 inch (8 x 31 x 1 mm)

2шт.

42

9412083

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

43

619333R1

FLANGED BEARING

HOUSING - bearing

2шт.

44

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

1шт.

45

664598R11

COLLAR

WITH SET SCREW

1шт.

46

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, hex socket headless cup point, 3/8 NF x 1 inch

1шт.

47

ZA104591

SPROCKET ASSY.

SPROCKET - 16 teeth

1шт.

48

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - (Use 99 links from roll marked 654437R91, 1 offset link, 654439R91 and 1 connecting link, 654438R91)

1шт.

654437R91

CHAIN (AG)

CHAIN - 10 foot (3.048 m) roll

1шт.

654438R91

LINK

- connecting

1шт.

654439R91

LINK

- offset

1шт.

49

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

50

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

51

96315C1

BRONZE BUSHING

BUSHING

1шт.

52

1281008C1

SPRING

1шт.

53

ZA104649

ARM

1шт.

54

67872C1

WASHER

1шт.

55

ZA740486

SPROCKET ASSY.

SPROCKET - 12 tooth

1шт.

56

1254031C1

RING

- retaining

1шт.

57

133214R91

BEARING LOCK NUT

BEARING

1шт.

58

446257

WASHER,3/4" x 1 3/4" x .148"

- flat, 13/16 x 1-3/4 x 1/8 inch (20 x 44 x 3 mm)

1шт.

59

NLS

NO LONGER SERVICED

BOLT - hex, 5/8 NC x 1-3/4 inch

1шт.

60

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

61

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/18 inch NC

1шт.
