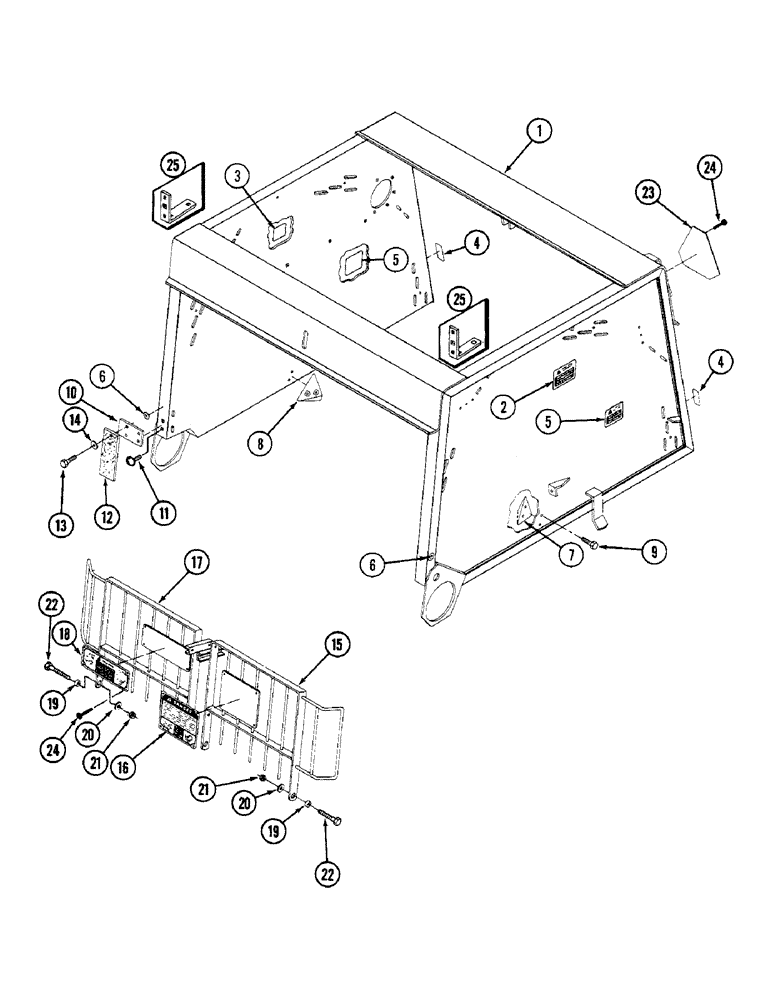

Запчасти Case IH 3450 (28) - TAILGATE FRAME

1

ZA104652

GUIDE

TAILGATE

1шт.

2

ZA105196

PRODUCT GRAPHIC

DECAL - warning

1шт.

3

ZA740950

DECAL

- warning

1шт.

4

ZA105194

PRODUCT GRAPHIC

DECAL - warning

2шт.

5

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

2шт.

6

NSS

NOT SOLD SEPARAT

DECAL - grease, 50 hours (Order kit 1265869C93)

2шт.

7

ZA104923

WEDGE

- left

1шт.

8

ZA104924

WEDGE

- right

1шт.

9

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

ZA104715

PLATE

1шт.

11

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

12

ZA104716

STRAP

- rubber

1шт.

13

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

118775

WASHER,3/8" x 13/16" x .065"

- flat, 13/32 x 13/16 x 3/64 inch (10 x 20 x 1 mm)

2шт.

15

ZA105505

GUARD

- left

1шт.

16

ZA104781

PRODUCT GRAPHIC

DECAL - danger

1шт.

17

ZA105504

GUARD

- right

1шт.

18

ZA104782

PRODUCT GRAPHIC

DECAL - warning

1шт.

19

ZA704673

SPACER

2шт.

20

120390

WASHER,1/2"

- flat, 17/32 x 1-3/8 x 3/32 inch (13 x 34 x 2 mm)

2шт.

21

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

2шт.

22

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

2шт.

23

NSS

NOT SOLD SEPARAT

EMBLEM - SMV

1шт.

24

436525C1

RIVET,Pop, 1/4" x 1/2"

- mandrel, 6.3 x 12.7 mm

1шт.

25

ZA104865

BRACKET

- light (Prior to P.I.N. 001132)

2шт.
