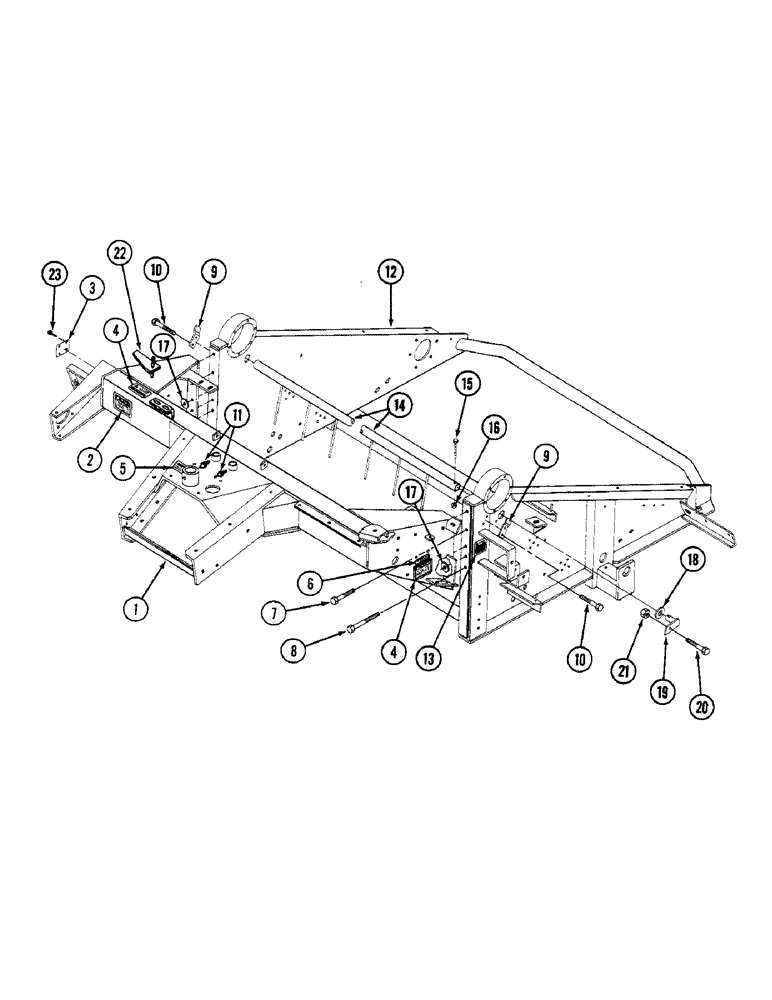

Запчасти Case IH 3450 (26) - FRAME

1

ZA104650

FRAME

ASSEMBLY - front

1шт.

2

ZA740950

DECAL

- warning

1шт.

3

ZA206987

PRODUCT GRAPHIC

DECAL - warning

1шт.

4

ZA104136

DECAL

- warning

2шт.

5

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL - welger system

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

6шт.

8

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

4шт.

9

ZA104626

BRACKET

- retainer

2шт.

10

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch

2шт.

12

ZA104651

FRAME

ASSEMBLY - main

1шт.

13

ZA740950

DECAL

- warning

1шт.

14

ZA104814

RETAINER

- crop

1шт.

15

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2

1шт.

16

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

1шт.

17

28425R1

WASHER

flat, 21/32 x 1-1/2 x 3/16 inch (16 x 38 x 4 mm)

1шт.

18

20704R1

WASHER

flat, 1-1/32 x 1-1/2 x 7/64 inch (26 x 38 x 2 mm)

1шт.

19

ZA104811

PIN

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

21

9413953

LOCK NUT,3/8"-16, GB

NUT - hex, 3/8 inch NC

1шт.

22

ZA105769

BRACKET

ASSEMBLY - actuator

1шт.

23

55077C1

RIVET

- mandrel, 4.8 x 11.5 mm

4шт.
