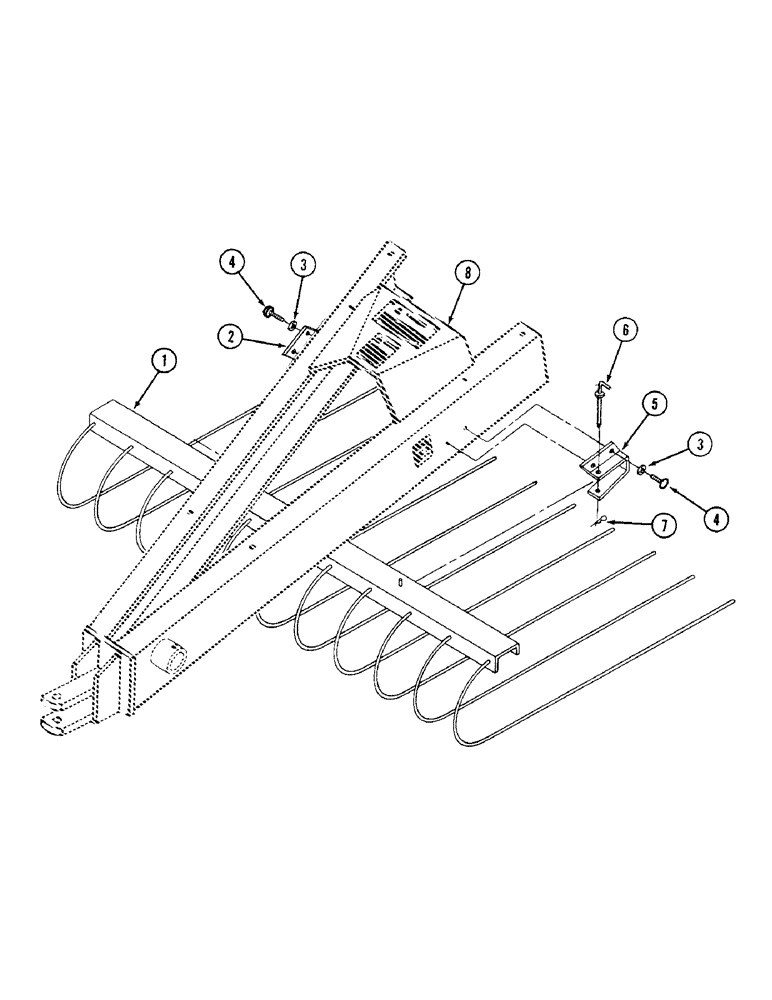

Запчасти Case IH 3450 (24) - WINDGUARD

1

ZA105095

GUARD

WINDGUARD

1шт.

2

ZA104921

BRACKET

- windguard right

1шт.

3

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm)

2шт.

4

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

5

ZA104922

BRACKET

- windguard left

1шт.

6

ZA104749

PIN

ASSEMBLY

2шт.

7

407211R1

CLIP

-PIN (Package of 20)

2шт.

8

REF

INSTRUCTION

HITCH

1шт.
