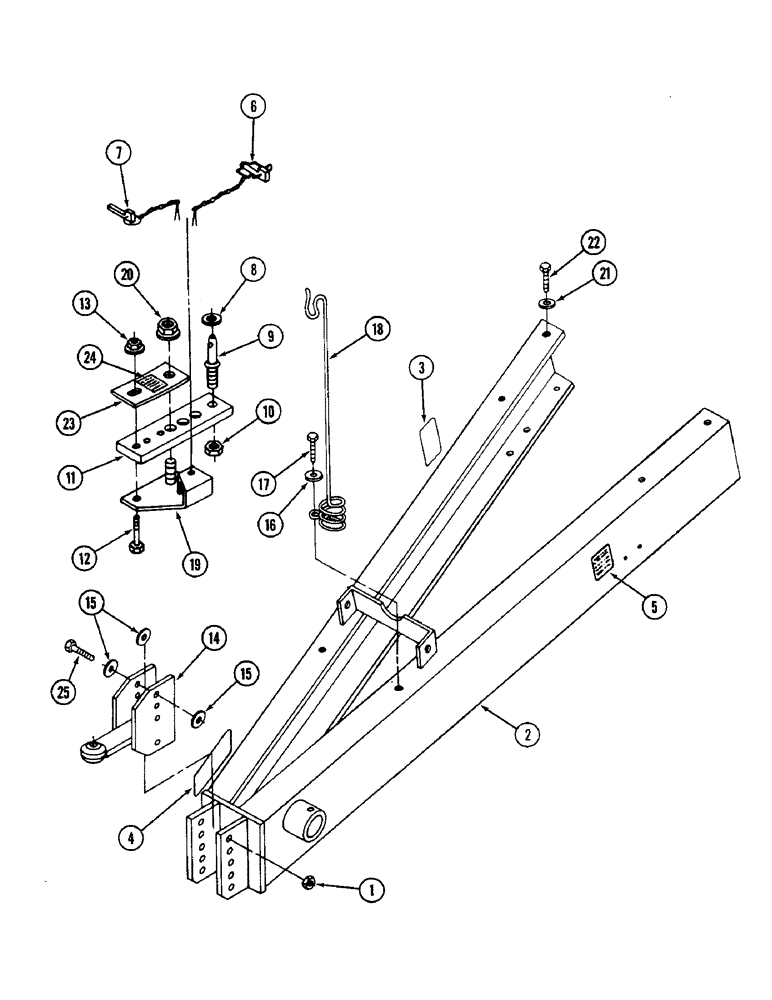

Запчасти Case IH 3450 (20) - HITCH, PRIOR TO P.I.N. 001280

1

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

1шт.

2

ZA104721

HITCH ASSY

HITCH ASSEMBLY

1шт.

3

96332C1

PRODUCT GRAPHIC

DECAL - warning

1шт.

4

96319C1

DECAL

- caution

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

1шт.

6

119522C1

PIN

- klik

1шт.

7

176868H1

PIN

- klik

1шт.

8

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch (29 x 50 x 2 mm)

1шт.

9

472790R2

STUD

- lower

1шт.

10

26076R1

LOCK NUT,1 1/8"-12, GB

NUT - hex, 1-1/8 inch NF

1шт.

11

ZA104542

BAR

- hitch extension

1шт.

12

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

13

60863C1

NUT

- hex flange, 5/8 inch NC

1шт.

14

ZA104770

BRACKET

- hitch

1шт.

15

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm)

1шт.

16

120390

WASHER,1/2"

- flat, 17/32 x 1-3/8 x 3/32 inch (13 x 34 x 2 mm)

1шт.

17

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

18

ZA103986

HOLDER

- hose

1шт.

19

145950C1

SUPPORT

1шт.

20

148032C1

NUT,Flg, USR, 1"-8

- hex flange, 1 inch NC

1шт.

21

28425R1

WASHER

- flat, 21/32 x 1-1/2 x 3/16 inch (16 x 38 x 4 mm)

1шт.

22

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

- hex, 5/8 NC x 1-1/2 inch

1шт.

23

222605C92

BAR

ASSEMBLY

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

1шт.

25

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.
