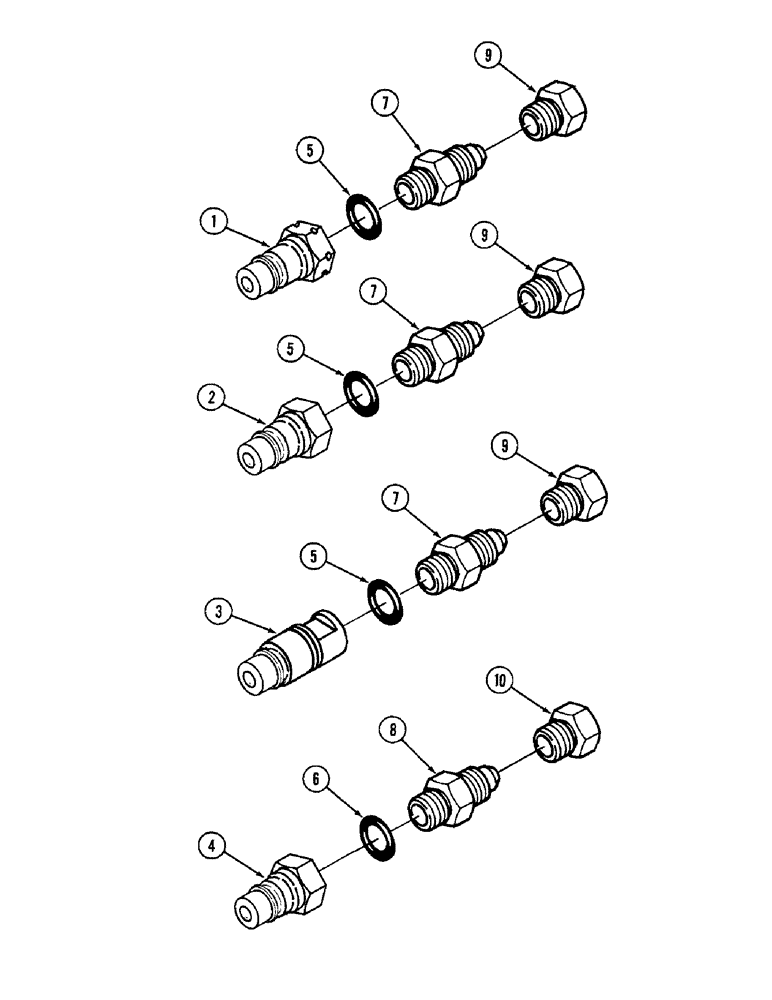

Запчасти Case IH 3450 (18) - HYDRAULIC SELF-SEALING COUPLINGS

1

395149R1

QUICK MALE COUPLING

COUPLING ASSEMBLY - poppet type male, 7/8-14 inch (Will work with ISO female coupling but at low efficiency)

1шт.

2

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 NF

1шт.

3

544787R91

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - ball type male, 7/8-14 inch (Will not work with ISO female coupling)

1шт.

4

1285718C2

QUICK MALE COUPLING

ASSEMBLY - ISO standard male, 3/4-16 inch

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Used with 7/8-14 inch couplers)

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube (Used with 3/4-16 inch couplers)

1шт.

7

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 3/8 tube, 9/16-18 x 7/8-14 inch thread (Used with 7/8-14 inch couplers)

1шт.

8

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - reducer, 3/8 tube, 9/16-18 x 1/2-14 inch thread (Used with 3/4-16 inch couplers) (Prior to P.I.N. 000800)

1шт.

8

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR - short reducer, 3/8 tube, 9/16-18 x 3/4-16 inch thread (Used with 3/4-16 inch couplers)

1шт.

9

407045R1

FITTING

CONNECTOR - 3/4-16 x 7/8-14 inch thread (For use with 7/8-14 couplers) (Used with bale slicer attachment)

1шт.

10

ZA105663

CONNECTOR, ELEC

CONNECTOR - 3/4-16 to 1/2-14 inch thread (For use with 3/4-16 inch couplers) (Used with bale slicer attachment)

1шт.
