Запчасти Case IH 3440 (58) - SAFETY CHAIN

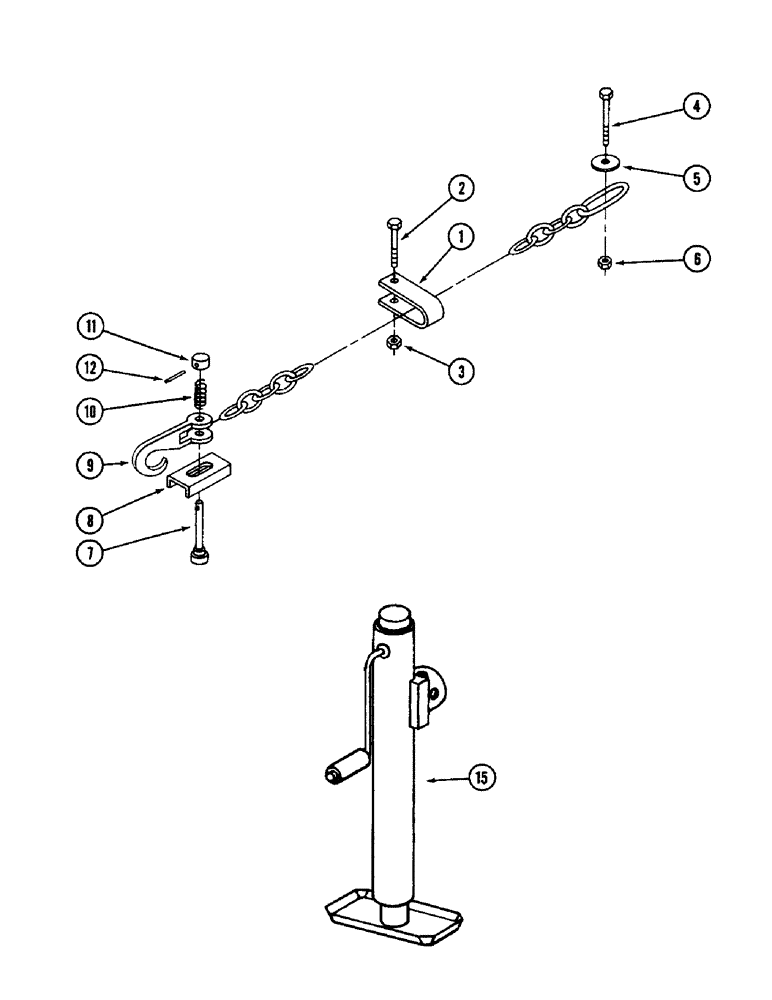

Схема запчастей Case IH 3440 - (58) - SAFETY CHAIN

Артикул

Название

Примечание

Количество

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch (8 x 1 504 MM)

1шт.

1

148558C1

CLEVIS

- safety chain

1шт.

Part of safety chain kit P/N 61913C92

1шт.

2

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

1шт.

Part of safety chain kit P/N 61913C92

1шт.

3

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

Part of safety chain kit P/N 61913C92

1шт.

4

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

Part of safety chain kit P/N 61913C92

1шт.

5

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch (20 x 51 x 4 MM)

1шт.

Part of safety chain kit P/N 61913C92

1шт.

6

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.

Part of safety chain kit P/N 61913C92

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - clevis

1шт.

8

NSS

NOT SOLD SEPARAT

LATCH - hook

1шт.

9

NSS

NOT SOLD SEPARAT

HOOK - safety chain

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

61913C92

PACKAGE

KIT - hardware, safety chain, Includes: Ref. 1, 2, 3, 4, 5 and 6

1шт.

15

119354C1

JACK

ASSEMBLY - side crank (Alternate part is 135061C91), parking

1шт.

15

135061C91

JACK

ASSEMBLY - side crank (Alternate part is 119354C1), parking

1шт.

Выбрано товаров: 22
