Заказать запчасти

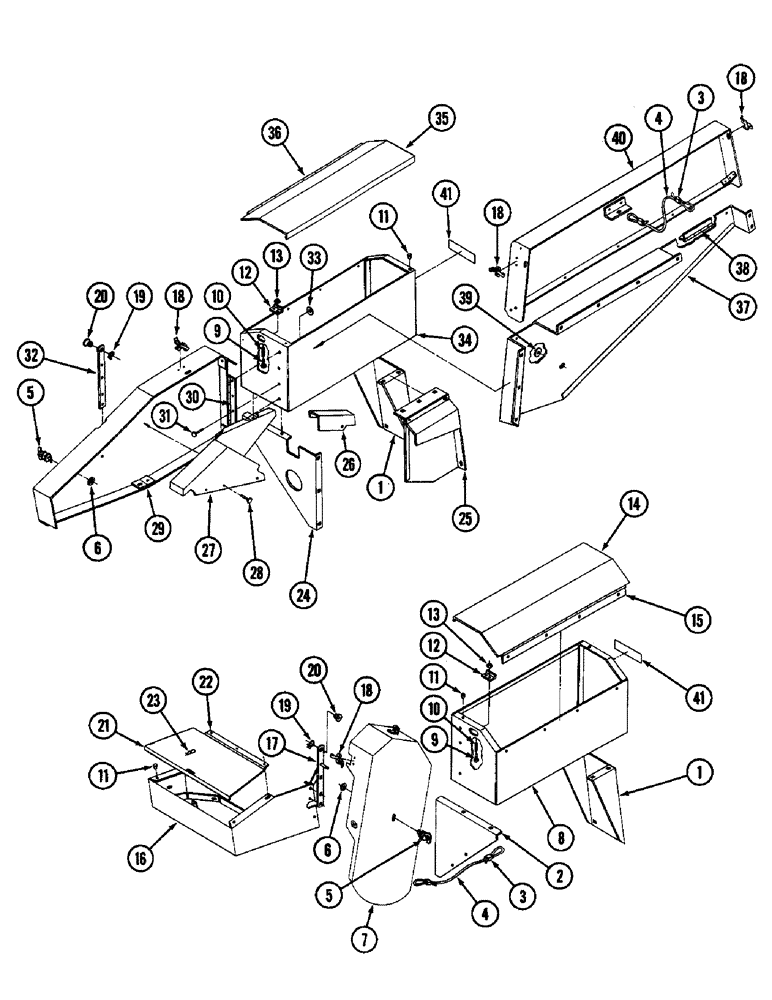

Запчасти Case IH 3440 (52) - TWINE BOX, TOOL BOX AND SHIELDS
№
Артикул
Название
Примечание
Количество
1
ZA104699
SUPPORT
- rear box
2шт.
2
ZA104966
SUPPORT
- left
1шт.
3
96326C1
SLEEVE
- cable
4шт.
4
ZA104429
CABLE
- shield
2шт.
5
ZA103138
FASTENER
- shield
2шт.
6
ZA103937
WASHER
- retaining
4шт.
7
ZA104925
SHIELD
- pickup drive
1шт.
8
ZA104935
BOX
- twine, left
1шт.
9
180042
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
BOLT - hex, 1/4 NC x 1-3/4 inch
4шт.
10
96314C1
SPRING
- compression
4шт.
11
ZA104611
PLUG
- rubber
6шт.
12
ZA104859
BRACKET
TENSIONER - twine
2шт.
14
ZA104938
DOOR
COVER - twine box, left
1шт.
15
ZA703189
HINGE
- cover
1шт.
16
ZA105942
BOX, TOOL
BOX - tool
1шт.
17
ZA105521
GUIDE
BRACKET - twine guide
1шт.
18
ZA762975
CLAMP
- latch
4шт.
19
324733R1
CLAMP,#16, 1", Spring
- hose, spring wire, no. 16 type E
2шт.
20
ZA104633
GUIDE
- twine
2шт.
21
ZA105939
DOOR
COVER - tool box
1шт.
22
ZA105940
HINGE
- tool box cover
1шт.
23
407211R1
CLIP
PIN - hair (Package of 20)
1шт.
24
ZA104965
SUPPORT
- right
1шт.
25
ZA104951
SHIELD
- floor drive
1шт.
26
ZA104602
SHIELD
- idler
1шт.
27
ZA104805
SHIELD
- inner
1шт.
28
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT - round head square neck, 3/8 NC x 1 inch
3шт.
29
ZA104945
SHIELD
- main drive chain
1шт.
30
ZA104944
HINGE
- shield
1шт.
31
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
4шт.
32
ZA104882
GUIDE
BRACKET - twine guide
1шт.
33
106969R1
WASHER
- flat, 11/32 x 1-1/4 x 3/64 inch (9 x 32 x 1 MM)
4шт.
34
ZA104934
BOX
- twine, right
1шт.
35
ZA104937
DOOR
COVER - twine box, right
1шт.
36
ZA703189
HINGE
- cover
1шт.
37
ZA104819
SHIELD
- lower
1шт.
38
ZA104827
HINGE
- shield
1шт.
39
118775
WASHER,3/8" x 13/16" x .065"
- flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 MM)
1шт.
40
ZA104797
SHIELD
- upper
1шт.
41
1284374C1
REFLECTOR,Reflector Red
- red
2шт.
Выбрано товаров: 41
