Запчасти Case IH 3440 (50) - BELTS AND ROLLER ASSEMBLIES 9 AND 10, CONTINUED

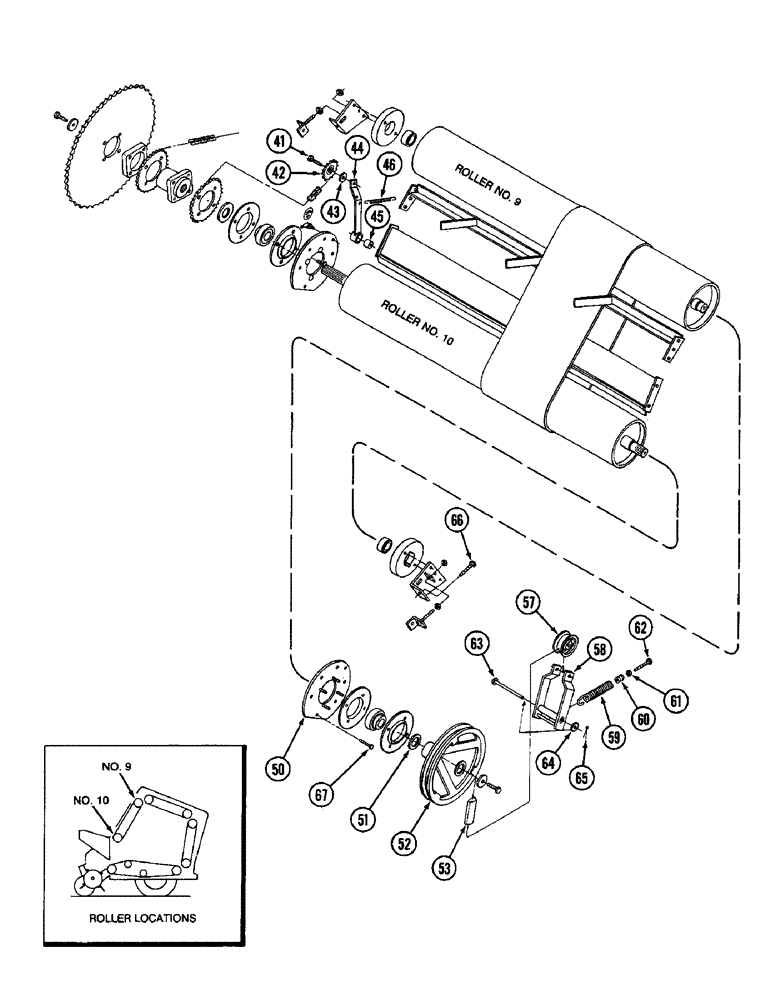

Схема запчастей Case IH 3440 - (50) - BELTS AND ROLLER ASSEMBLIES 9 AND 10, CONTINUED

Артикул

Название

Примечание

Количество

(Continued from page 48)

1шт.

41

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

42

541857R92

SPROCKET,15T

ASSEMBLY - idler (Includes bearing)

1шт.

43

67872C1

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch (17 x 32 x 6 MM)

1шт.

44

ZA104649

ARM

ASSEMBLY - idler sprocket

1шт.

45

96315C1

BRONZE BUSHING

BUSHING - idler arm

1шт.

46

1281008C1

SPRING

- extension

1шт.

50

ZA104824

PLATE

- left

1шт.

51

22051R1

WASHER

- flat, 1-17/32 x 2-1/4 x 3/64 inch (30 x 57 x 1 MM)

1шт.

52

ZA104842

PULLEY

- upper, pickup drive, regular speed, 9 inch (229 MM) OD (See note)

1шт.

52

ZA104645

PULLEY

- upper, pickup drive, high speed, 10-3/8 inch (264 MM) OD (See note)

1шт.

53

ZA104774

BELT

- Pickup drive, Regular speed (See note)

1шт.

53

668902R1

BELT

- Pickup drive, High speed (See note)

1шт.

57

ZA103001

PULLEY

- idler

1шт.

58

ZA104215

ARM

- idler pulley

1шт.

59

ZA271276

SPRING

- extension

1шт.

60

ZA201085

INSERT

- spring

1шт.

61

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

62

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

1шт.

63

21993R1

SPLIT PIN/SAFETY PIN

PIN - headed, 1/2 x 3-1/2 inch

1шт.

64

27342R1

WASHER

WASHER - flat, 17/32 x 1 x 3/64 inch (13 x 25 x 1 MM)

1шт.

65

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

66

1960708C1

BOLT

- hex, special (replaces 196708C1)

2шт.

67

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

Выбрано товаров: 24
