Запчасти Case IH 3440 (42) - BELTS AND ROLLER ASSEMBLIES 1 THROUGH 4

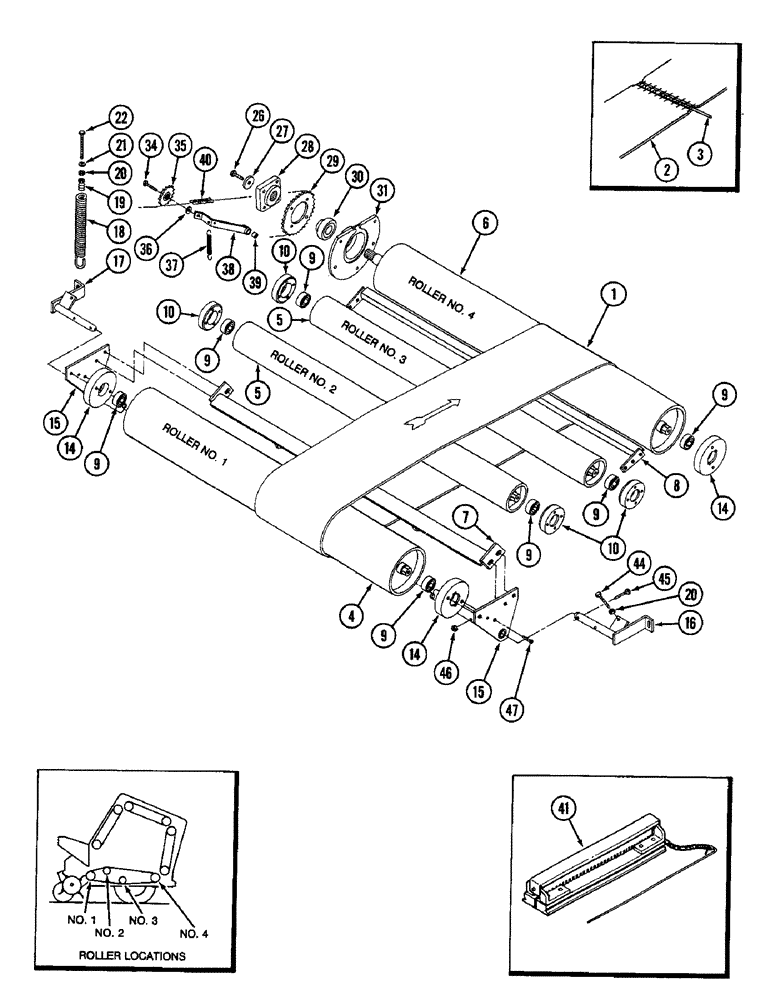

Схема запчастей Case IH 3440 - (42) - BELTS AND ROLLER ASSEMBLIES 1 THROUGH 4

Артикул

Название

Примечание

Количество

1

ZA104765

BELT

- roller, endless, 11 inch (279 MM) wide (Alternate part is ZA104712)

4шт.

2

ZA104712

BELT

- Roller, 11 inch (279 mm) wide (Alternate part is ZA104765)

4шт.

3

ZA102977

PIN

- belt

1шт.

4

ZA105926

ROLLER

ASSEMBLY - number 1

1шт.

5

ZA105916

ROLLER

ASSEMBLY - number 2 and 3

2шт.

6

ZA105918

ROLLER

ASSEMBLY - number 4

1шт.

7

ZA105980

DIVIDER

- belt

1шт.

8

ZA105913

STRIPPER

SCRAPER - roller

1шт.

9

ZA105794

BALL BEARING

BEARING - hex bore, 1.25 inch (32 MM) ID

7шт.

10

ZA105796

COLLAR

- bearing

4шт.

14

ZA105799

COLLAR

- bearing

3шт.

15

ZA105946

PIVOT

- idler

1шт.

16

ZA104905

SHAFT

ASSEMBLY - pivot, left

1шт.

17

ZA104906

SHAFT

ASSEMBLY - pivot, right

1шт.

18

ZA761370

SPRING

ASSEMBLY - extension

2шт.

19

1281009C1

INSERT

- spring

1шт.

20

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 MM)

2шт.

22

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

26

27908R1

BOLT,1/2" x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

1шт.

27

357020R1

WASHER

- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 MM)

1шт.

28

ZA104593

HUB

- splined

1шт.

29

ZA104227

SPROCKET ASSY.

SPROCKET - 30 tooth

1шт.

30

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- ball, 1.57 inch (40 MM) ID

1шт.

31

ZA104841

HOUSING

- bearing

1шт.

34

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

35

541857R92

SPROCKET,15T

ASSEMBLY - idler (Includes bearing)

1шт.

36

67872C1

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch (17 x 32 x 6 MM)

1шт.

37

1281008C1

SPRING

- extension

1шт.

38

ZA104649

ARM

ASSEMBLY - idler sprocket

1шт.

39

96315C1

BRONZE BUSHING

BUSHING - idler arm

1шт.

40

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - roller 10 to roller 4 (Use 151 links from bulk chain 611362R1, and 1 connecting link 574532R91)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot (3 M) roll

1шт.

574532R91

CLIP, SPRING

LINK - chain, connecting

1шт.

41

1254050C1

TOOL

LACER - belt, 6 inch (152 MM)

1шт.

44

667486R1

BOLT

BOLT - hex, special

2шт.

45

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

46

9413956

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

47

1336821C1

SCREW,Lock, Flat Csk Hd, 3/8" - 16 x 125mm

BOLT - hex socket flat head, 3/8 NC x 1 inch

8шт.

208790C1

PACKAGE

KIT - repair, belt (Box of lacing hooks)

1шт.

Выбрано товаров: 40
