Запчасти Case IH 3440 (34) - TAILGATE FRAME

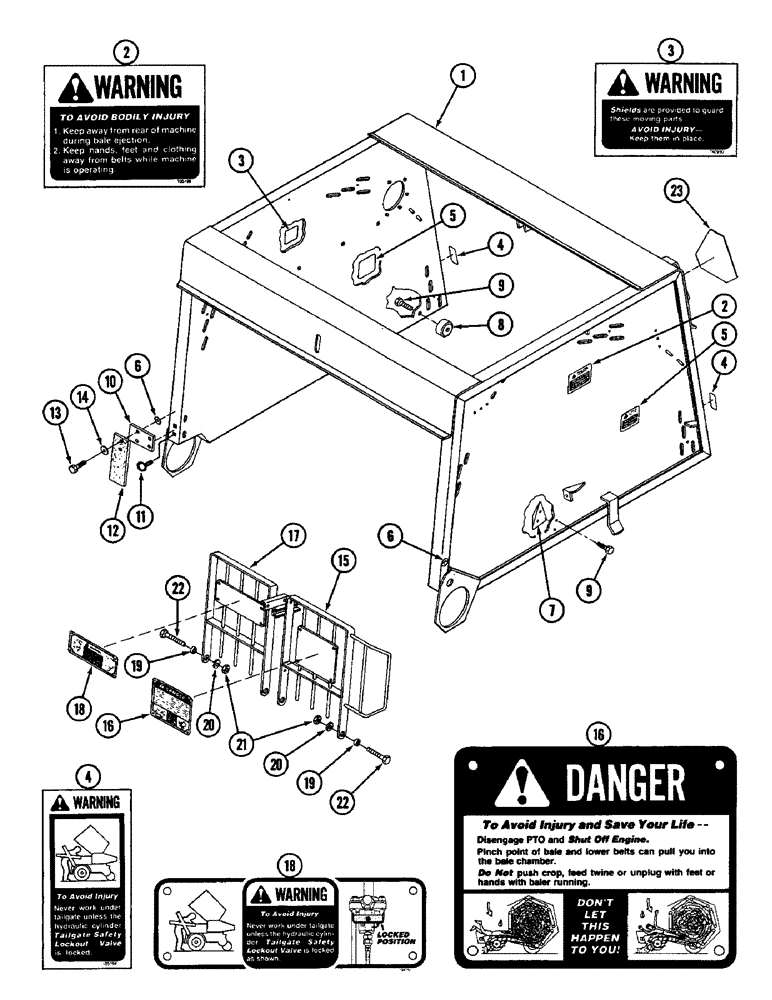

Схема запчастей Case IH 3440 - (34) - TAILGATE FRAME

Артикул

Название

Примечание

Количество

1

ZA105927

GUIDE

FRAME ASSEMBLY - tailgate, with decals

1шт.

2

REF

INSTRUCTION

DECAL - warning, keep away from rear (See Figure 62)

1шт.

3

REF

INSTRUCTION

DECAL - warning, keep shields in place (See Figure 62)

1шт.

4

REF

INSTRUCTION

DECAL - warning, tailgate safety lockout valve (See Figure 62)

2шт.

5

REF

INSTRUCTION

DECAL - important, changing bale weight (See Figure 62)

2шт.

6

REF

INSTRUCTION

DECAL - grease, 50 hours (See Figure 62)

2шт.

7

ZA104923

WEDGE

- left

1шт.

8

ZA105914

SPACER

PIN - bale ejection

1шт.

9

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

10

ZA104715

PLATE

- mounting

1шт.

11

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch, grade 1

2шт.

12

ZA104716

STRAP

- rubber

1шт.

13

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

118775

WASHER,3/8" x 13/16" x .065"

- flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 MM)

2шт.

15

ZA105977

GUARD

- left

1шт.

16

REF

INSTRUCTION

PLATE - graphic, danger, bale chamber pinch point (See Figure 65)

1шт.

17

ZA105976

GUARD

- right

1шт.

18

REF

INSTRUCTION

PLATE - graphic, warning, tailgate safety lockout valve (See Figure 64)

1шт.

19

ZA704673

SPACER

- 1/2 ID x 11/32 inch (13 x 9 MM)

2шт.

20

120390

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch (14 x 35 x 2 MM)

2шт.

21

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

2шт.

22

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

2шт.

23

REF

INSTRUCTION

DECAL - SMV emblem (See Figure 64)

1шт.

Выбрано товаров: 23
