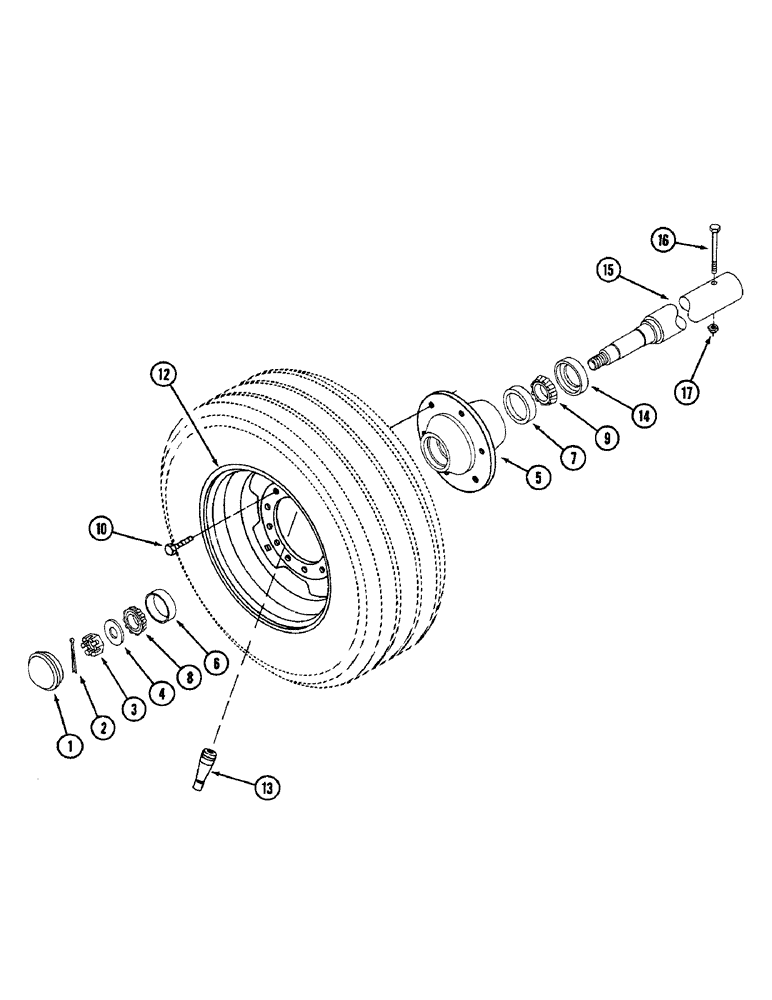

Запчасти Case IH 3440 (32) - TRANSPORT WHEEL AND AXLE

1

614406R1

CAP

- hub

2шт.

2

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

3

427646

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

2шт.

4

25539R1

WASHER

WASHER - flat, hardened

2шт.

5

ZA625501

HUB

ASSEMBLY - wheel

2шт.

6

651817R1

BEARING CUP

CUP - bearing, outer

2шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

7

478793R1

BEARING CUP

CUP - bearing, inner

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

2шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - bearing, inner

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel

12шт.

12

1336823C1

WHEEL

- for 9.5 L - 14 tire

2шт.

13

387841R91

VALVE

- inflation

2шт.

14

1254019C1

OIL SEAL

SEAL - oil

2шт.

15

ZA103696

SPINDLE

- wheel

2шт.

16

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

2шт.

17

9413969

NUT,5/8"-11, GB

- hex lock, 5/8 inch NC

2шт.
