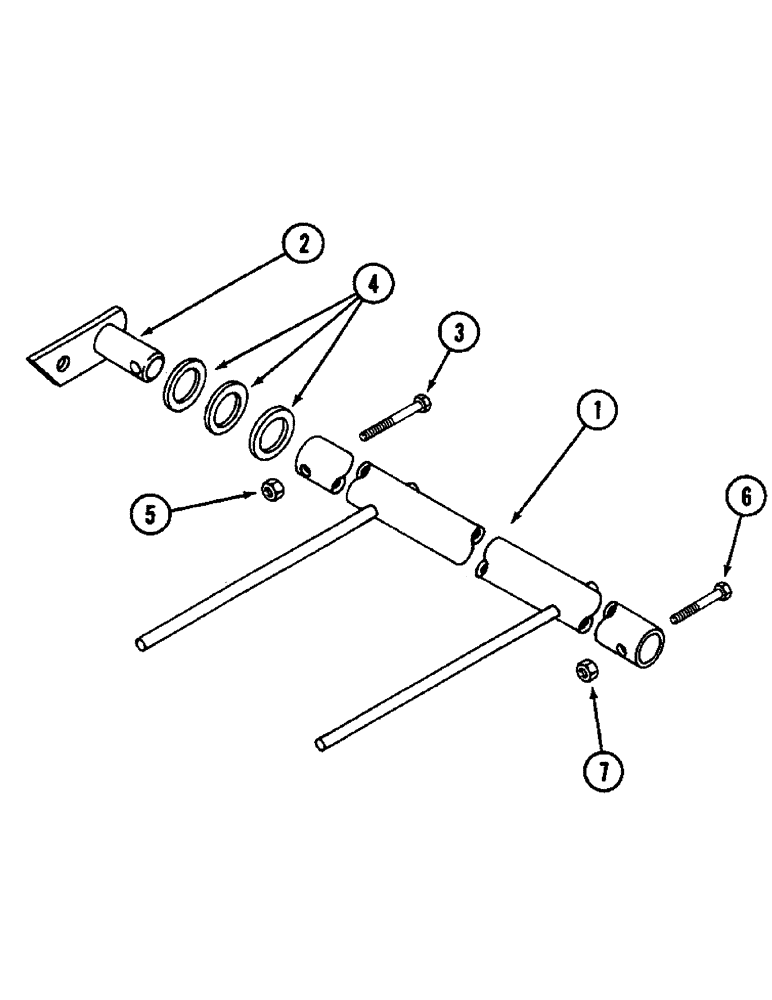

Запчасти Case IH 3440 (30) - CROP RETAINER

ZA4830003

RETAINER ATTACHMENT - crop, 4 foot (1 219 MM) (Machinery item, order 0101041)

1шт.

1

NSS

NOT SOLD SEPARAT

RETAINER ASSEMBLY - crop (Order machinery item)

1шт.

2

ZA104811

PIN

SHAFT ASSEMBLY - stub

1шт.

3

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.

4

20704R1

WASHER

- flat, 1-1/32 x 1-1/2 x 7/64 inch (26 x 38 x 3 MM)

6шт.

5

9413956

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

7

9413953

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.
