Запчасти Case IH 3440 (26) - HITCH, FRONT FRAME AND MAIN FRAME

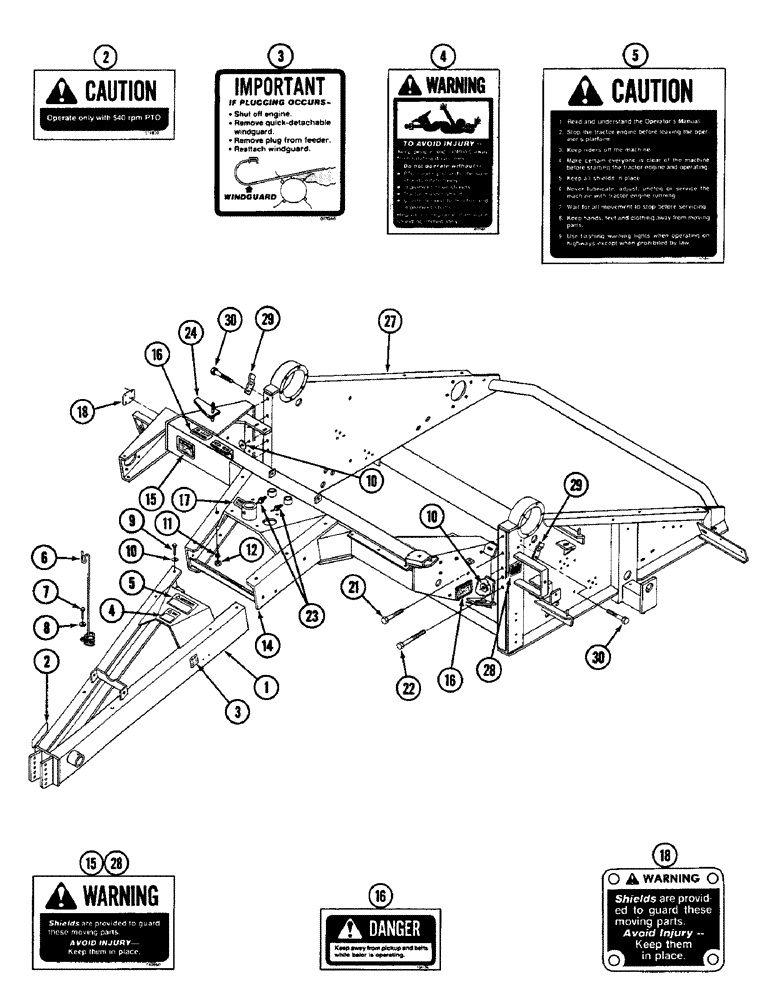

Схема запчастей Case IH 3440 - (26) - HITCH, FRONT FRAME AND MAIN FRAME

Артикул

Название

Примечание

Количество

1

ZA104550

TRAILER HITCH

HITCH ASSEMBLY - with decals

1шт.

2

REF

INSTRUCTION

DECAL - caution, 540 RPM PTO (See page 62)

1шт.

3

REF

INSTRUCTION

DECAL - important, if plugging occurs (See page 62)

1шт.

4

REF

INSTRUCTION

DECAL - warning, rotating drive lines (See page 62)

1шт.

5

REF

INSTRUCTION

DECAL - caution, rules for safe operation (See page 64)

1шт.

6

ZA103986

HOLDER

- hose

1шт.

7

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

8

120390

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch (14 x 35 x 2 MM)

1шт.

9

NLS

NO LONGER SERVICED

- hex, 5/8 NC x 1-1/2 inch

8шт.

10

28425R1

WASHER

- flat, hardened

24шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

14

ZA105933

FRAME

ASSEMBLY - front, with decals

1шт.

15

REF

INSTRUCTION

DECAL - warning, keep shields in place (See page 62)

1шт.

16

REF

INSTRUCTION

DECAL - danger, keep away from pickup and belts (See page 62)

2шт.

17

REF

INSTRUCTION

DECAL - important, store jack here (See page 62)

1шт.

18

REF

INSTRUCTION

PLATE - graphic, warning, keep shields in place (See page 64)

1шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

6шт.

22

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

4шт.

23

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, thread forming, 1/4 inch

2шт.

24

ZA105769

BRACKET

ASSEMBLY - actuator

1шт.

27

ZA105930

FRAME

ASSEMBLY - main, with decal

1шт.

28

REF

INSTRUCTION

DECAL - warning, keep shields in place (See page 62)

1шт.

29

ZA104626

BRACKET

- retainer

2шт.

30

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

Выбрано товаров: 25
