Запчасти Case IH 3440 (24) - HYDRAULIC COUPLINGS AND CONNECTORS

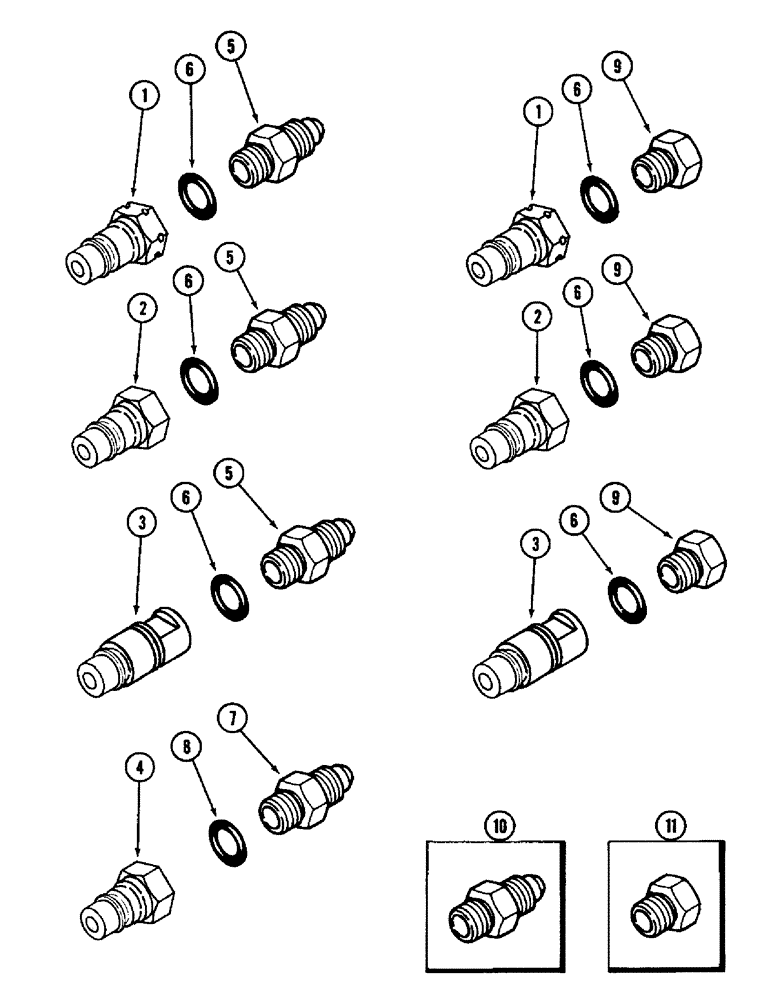

Схема запчастей Case IH 3440 - (24) - HYDRAULIC COUPLINGS AND CONNECTORS

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLING ASSEMBLY - male, poppet type, 7/8-14 inch (Will work with ISO female coupling but at lower efficiency than 1272399C2 or 1285718C2)

1шт.

2

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - male, ISO standard, 7/8-14 inch

1шт.

3

544787R91

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male, ball type, 7/8-14 inch (Will not work with ISO female coupling)

1шт.

4

1285718C2

QUICK MALE COUPLING

ASSEMBLY - male, ISO standard, 3/4-16 inch

1шт.

5

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 3/8 tube, 9/16-18 x 7/8-14 inch

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

7

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR - 3/8 tube, 9/16-18 x 3/4-16 inch

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

9

407045R1

FITTING

BUSHING - 7/8-14 male x 3/4-16 inch female (Use to connect 7/8-14 coupling to flow orifice with 3/4-16 inch thread)

1шт.

10

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 3/8 tube, 9/16-18 x 1/2 inch PT

1шт.

11

ZA105663

CONNECTOR, ELEC

ADAPTER - 1/2 inch male PT x 3/4-16 female (Use to connect 1/2 inch PT coupling to flow orifice with 3/4-16 thread)

1шт.

Выбрано товаров: 11
