Запчасти Case IH 3440 (22) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8" (203MM) STROKE

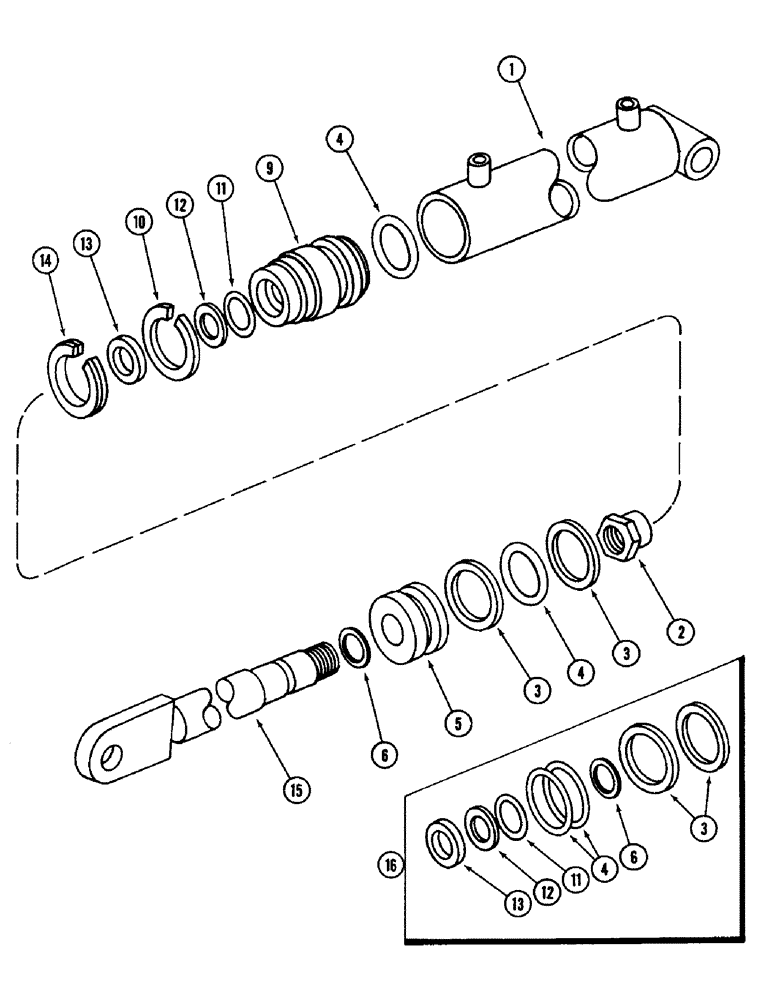

Схема запчастей Case IH 3440 - (22) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8" (203MM) STROKE

Артикул

Название

Примечание

Количество

ZA103959

CYLINDER

ASSEMBLY - twine tube (KMW)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order ZA103959)

1шт.

2

1958264C1

NUT

- hex lock, 1/2 inch NF

1шт.

3

NSS

NOT SOLD SEPARAT

BACKUP - piston o-ring

2шт.

Part of seal kit P/N ZA516462

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - head and piston

2шт.

Part of seal kit P/N ZA516462

1шт.

5

ZA516460

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

9

ZA516455

HEAD

- cylinder

1шт.

10

ZA516457

RING

- retaining

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP - piston rod o-ring

1шт.

Part of seal kit P/N ZA516462

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N ZA516462

1шт.

14

ZA516458

RING

- retaining

1шт.

15

ZA104015

SHAFT

ROD ASSEMBLY - piston

1шт.

16

ZA516462

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 11, 12, and 13

1шт.

Выбрано товаров: 21
