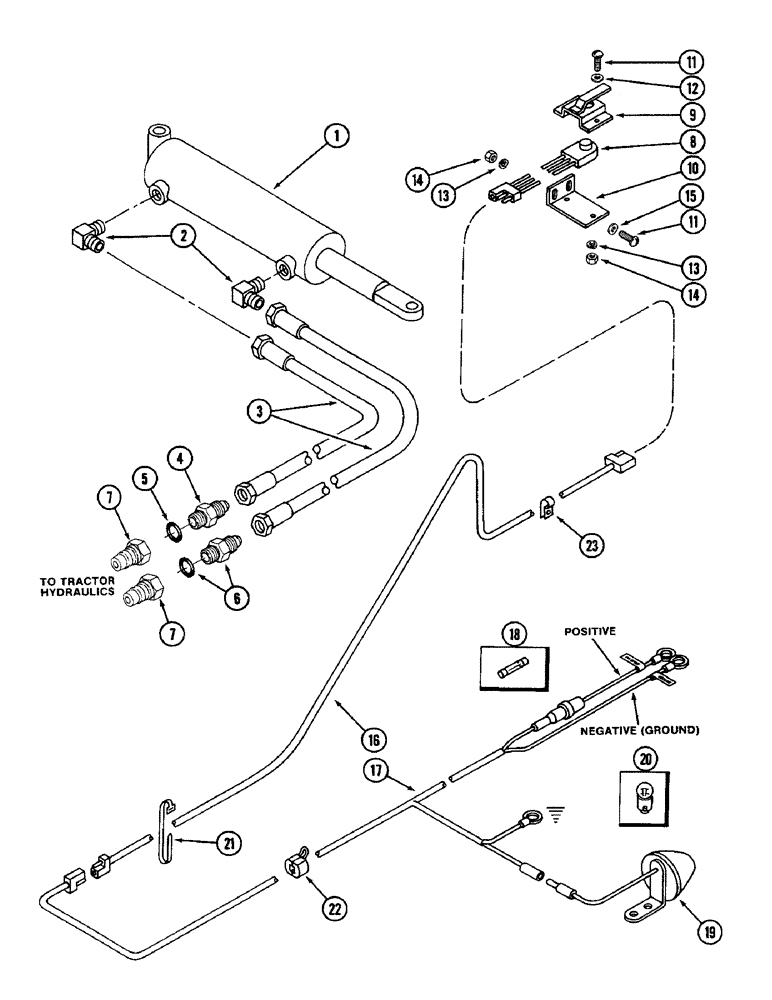

Запчасти Case IH 3440 (18) - HYDRAULIC TWINE TIE SYSTEM

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - twine tube (Cross) (See page 20)

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - twine tube (KMW) (See page 22)

1шт.

2

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

- male, 90 degree

2шт.

3

139319C2

BRACKET

HOSE ASSEMBLY - twine tube cylinder, 3/8 ID x 135 inch (10 x 3 429 MM)

2шт.

4

ZA105378

FITTING

ORIFICE ASSEMBLY - 9/16-18 x 3/4-16 inch, 0.031 inch dia. (0.787 MM)

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

6

REF

INSTRUCTION

CONNECTOR - 3/8 inch tube (See page 24)

1шт.

7

REF

INSTRUCTION

COUPLING ASSEMBLY - hydraulic (See page 24)

2шт.

8

ZA103633

SWITCH

- bale density

1шт.

9

ZA104562

COVER

ASSEMBLY - switch

1шт.

10

ZA104561

BRACKET

- switch

1шт.

11

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head slotted, no. 10 NC x 1/2 inch

4шт.

12

221431

WASHER - flat, 5/32 x 3/8 x 1/32 inch (4 x 10 x 1 MM)

2шт.

13

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

14

26303R1

HARDWARE,#10-24

NUT - hex, no. 10 NC

4шт.

15

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (6 x 13 x 1 MM)

2шт.

16

ZA105637

HARNESS

- baler

1шт.

17

ZA105636

HARNESS

- tractor

1шт.

18

3118918R1

FUSE

- 3 AG, 5 ampere

1шт.

19

ZA105839

LIGHT

LAMP ASSEMBLY - full bale

1шт.

20

142450

BULB,C2R, #67, 13.5V

- lamp, no. 67

1шт.

21

291207C1

CLAMP

STRAP - tie

1шт.

22

ZA104394

BUSHING

- strain relief

1шт.

23

299407C1

CLAMP

- tube

1шт.
