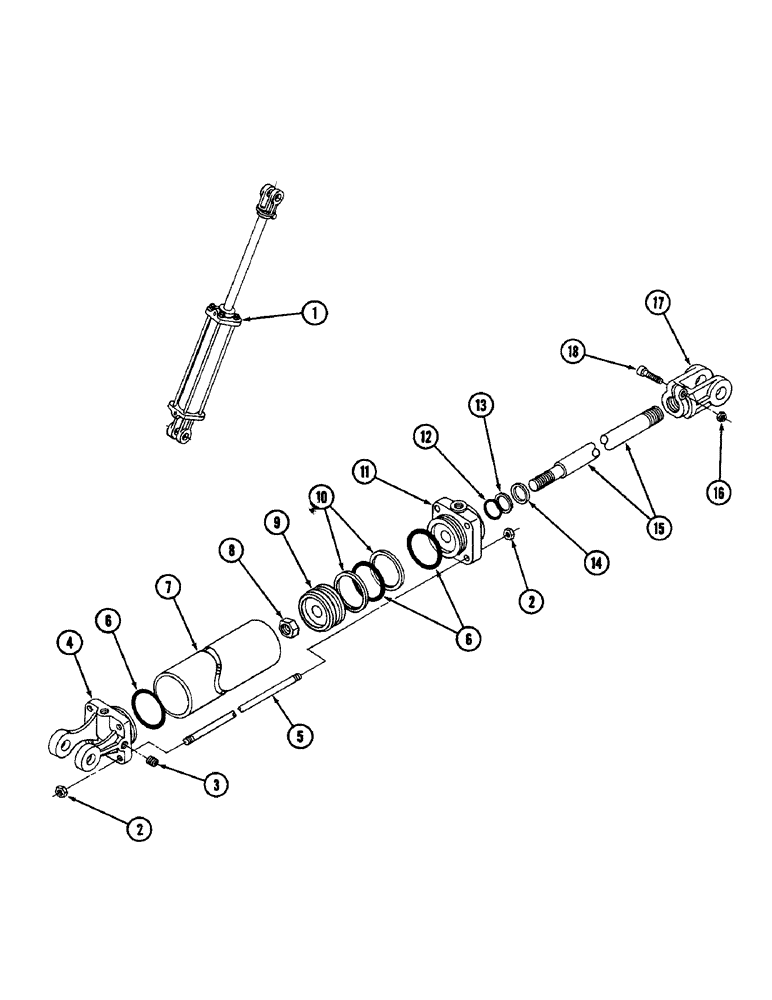

Запчасти Case IH 3440 (16) - TAILGATE HYDRAULIC CYLINDER, 3 INCH (76 MM) BORE X 16 INCH (406MM) STROKE

1

ZA104773

CYLINDER

ASSEMBLY - hydraulic, tailgate

2шт.

2

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

3

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, square socket, 3/8 inch PT

1шт.

4

ZA104995

BASE

- cylinder

1шт.

5

ZA104997

ROD

- tie

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cylinder

3шт.

Part of seal kit P/N 812173C1

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order ZA104773)

1шт.

8

851124C1

NUT

- hex lock, 3/4 inch NF

1шт.

9

812169C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP - piston o-ring

2шт.

Part of seal kit P/N 812173C1

1шт.

11

ZA104996

HEAT-EXCHANGER

HEAD - cyllinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 812173C1

1шт.

13

NSS

NOT SOLD SEPARAT

BACKUP - piston rod o-ring

1шт.

Part of seal kit P/N 812173C1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 812173C1

1шт.

15

ZA104998

ROD

- piston

1шт.

16

120377

NUT,3/8" - 16, Gr 5

1шт.

17

T55022

CLEVIS

- piston rod

1шт.

18

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket head, 3/8 NC x 1-3/4 inch

1шт.

812173C1

SEAL KIT

KIT - seal, Includes: Ref. 6, 10, 12, 13 and 14

1шт.
