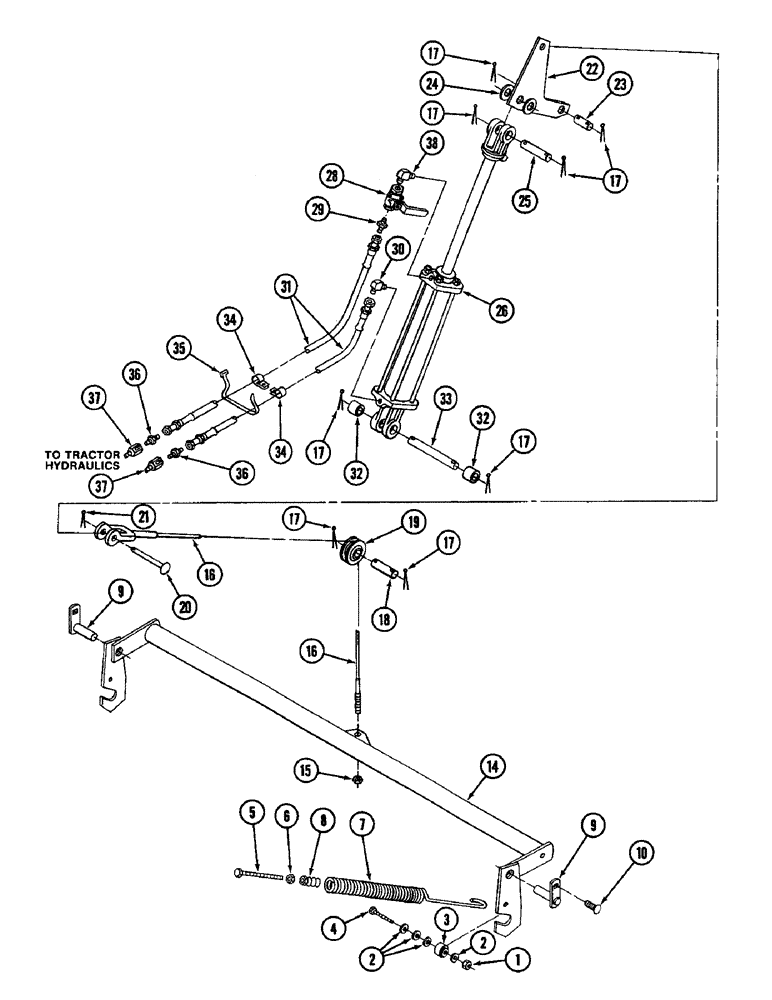

Запчасти Case IH 3440 (14) - TAILGATE HYDRAULICS AND LATCH

1

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

2шт.

2

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 MM)

8шт.

3

96339C1

CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"

FOLLOWER - cam. crowned

2шт.

4

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

5

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

6

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

ZA104886

SPRING

ASSEMBLY - extension

2шт.

8

1281009C1

INSERT

- spring

2шт.

9

ZA104672

PIN

ASSEMBLY - latch

2шт.

10

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch, grade 1

2шт.

14

ZA105907

LATCH

ASSEMBLY - tailgate

1шт.

15

9413956

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

16

ZA104895

CABLE

ASSEMBLY - latch

1шт.

17

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

18

62575C1

PIN

- pulley

1шт.

19

1281014C1

PULLEY

- lift

1шт.

20

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

21

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

22

ZA105617

PLATE

- pivot

1шт.

23

22983R1

HEADED PIN,1" x 2"

PIN - headed, 1 x 2 inch

1шт.

24

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch (29 x 51 x 3 MM)

2шт.

25

63196C1

PIN

- clevis

1шт.

26

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, tailgate (See page 16)

1шт.

28

ZA103758

VALVE

- rotary

1шт.

29

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR - 3/8 tube, /16-18 x 3/8 inch PT

1шт.

30

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees, 3/8 tube, 9/16-18 x 3/8 inch PT

1шт.

31

147779C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 1/4 ID x 145 inch (6 x 3 683 MM)

2шт.

32

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

- 1-3/64 ID x 3/4 inch (27 x 19 MM)

2шт.

33

110928C1

PIN - clevis

1шт.

34

299407C1

CLAMP

- tube

2шт.

35

533959R1

CABLE TIE,.135" x 11"

STRAP - tie

3шт.

36

REF

INSTRUCTION

CONNECTOR - 3/8 inch tube (See page 24)

2шт.

37

REF

INSTRUCTION

COUPLING ASSEMBLY - hydraulic (See page 24)

2шт.

38

1336822C1

ELBOW

- 90 degrees, 3/8 inch PT

1шт.
