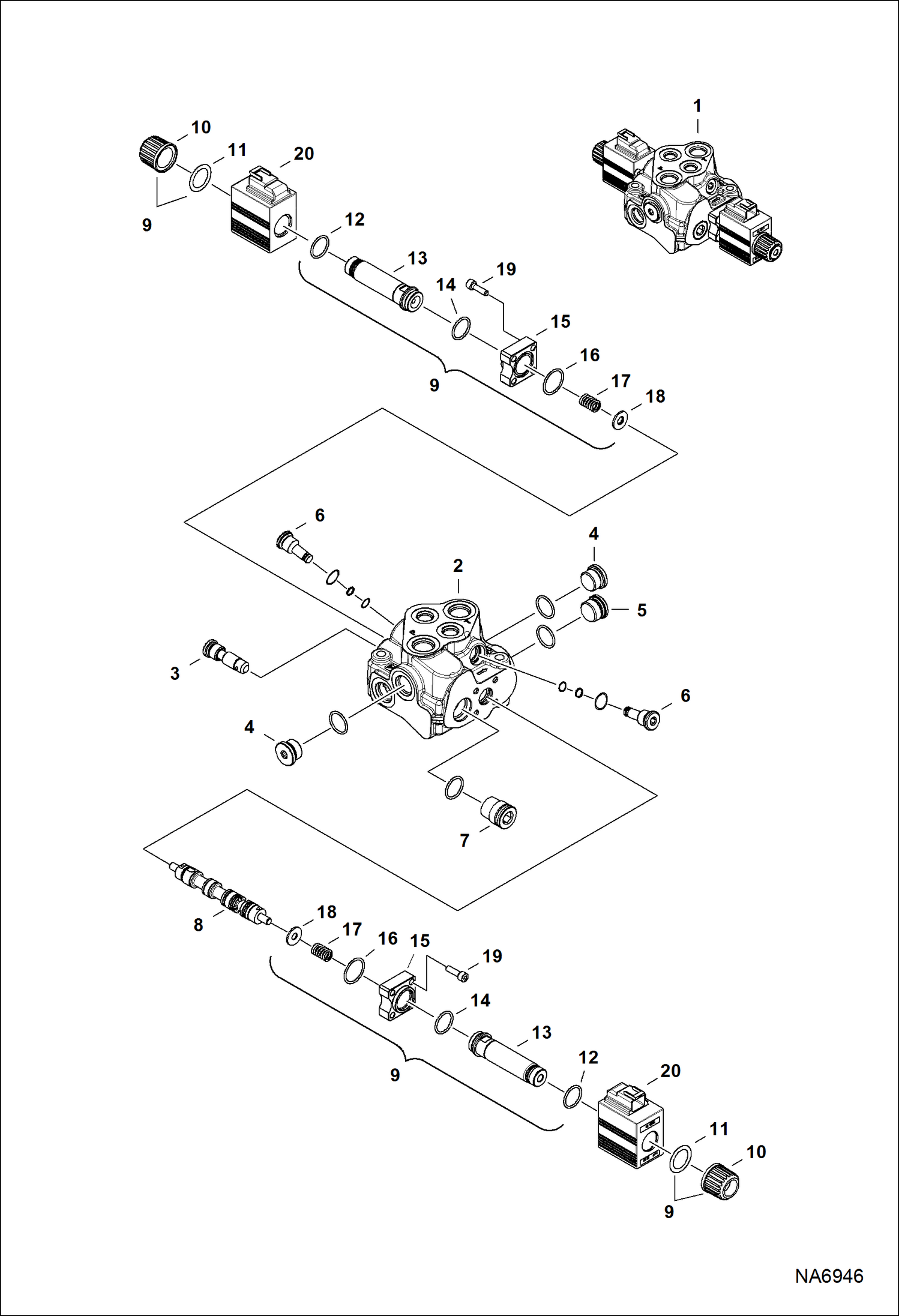

Запчасти Bobcat 3650 AUXILIARY VALVE HYDRAULIC SYSTEM

1

7023415

VALVE, SOLENOID

2

BODY, VALVE NSS - Order Ref. 1

3

7027075

PLUG

4

6679600

PLUG

5

7027076

PLUG

6

7027077

PLUG

7

6679619

PLUG

8

7027078

SPOOL

9

7027079

KIT, SOLENOID includes (2) ea Ref. 10-19 & (8) ea Ref. 19

10

NUT NSS - Order Ref. 9

11

WASHER NSS - Order Ref. 9

12

O-RING NSS - Order Ref. 9

13

SOLENOID NSS - Order Ref. 9

14

O-RING NSS - Order Ref. 9

15

FLANGE NSS - Order Ref. 9

16

7015578

O-RING

17

SPRING NSS - Order Ref. 9

18

WASHER NSS - Order Ref. 9

19

6673858

BOLT

20

7027080

COIL, SOLENOID
