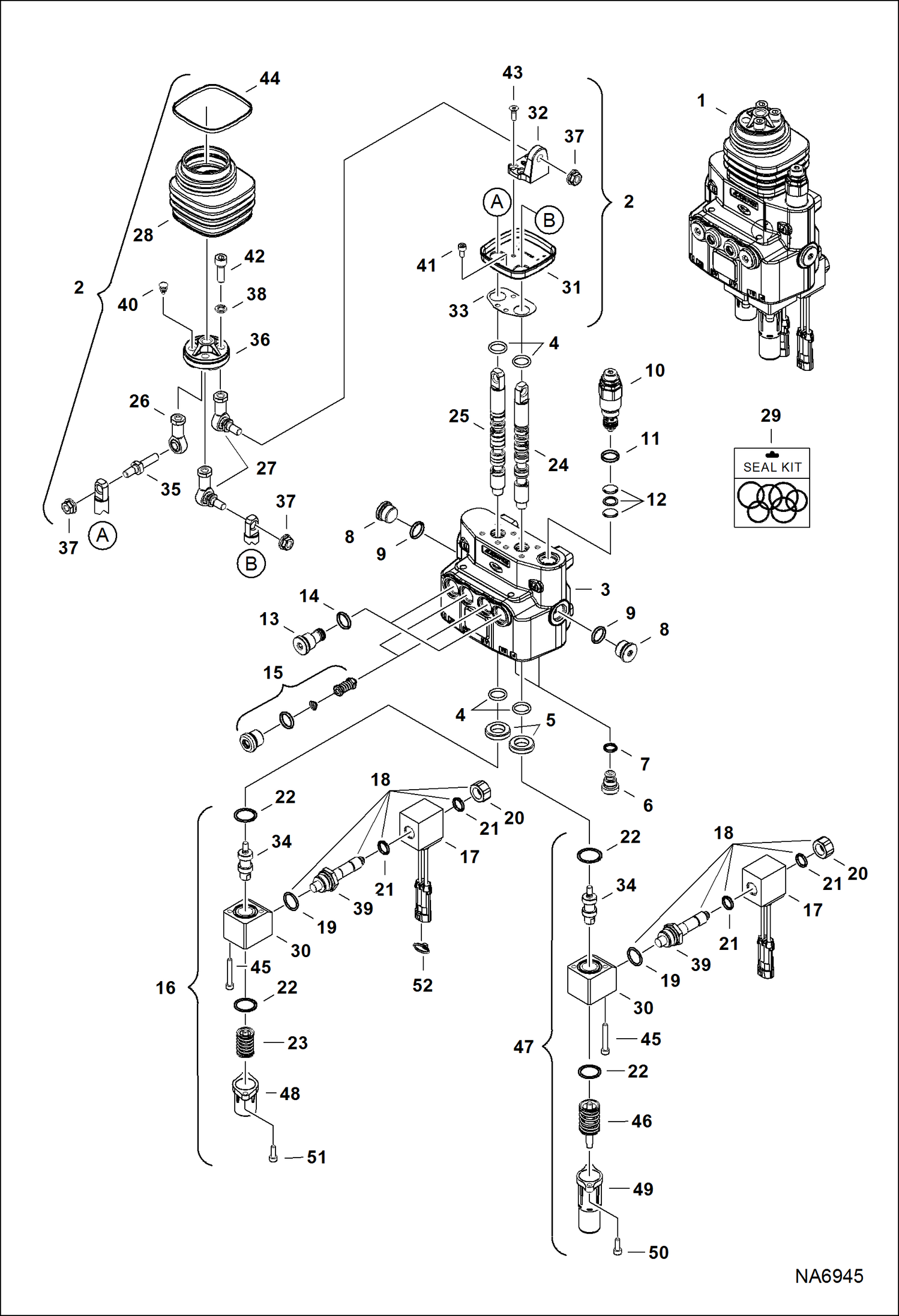

Запчасти Bobcat 3650 CONTROL VALVE HYDRAULIC SYSTEM

1

7023414

VALVE, CONTROL

2

7027068

KIT, LINK CONTROL

3

BODY, VALVE NSS - Order Ref. 1

4

6679499

O-RING

5

6679593

WASHER

6

6680092

VALVE, LOCK LOAD W/Ref. 7

7

O-RING NSS - Order Ref. 6

8

6679600

PLUG W/Ref. 9

9

O-RING NSS - Order Ref. 8

10

7027069

VALVE, RELIEF MAIN W/Ref. 11

11

O-RING NSS - Order Ref. 10

12

KIT, SEAL

13

7025571

PLUG W/Ref. 14

14

O-RING NSS - Order Ref. 13

15

7027071

KIT, VALVE RELIEF PORT

16

7027072

KIT, END VALVE W/Ref. 17-22

17

6691203

COIL

18

6691199

SOLENOID

19

O-RING NSS - Order Ref. 18

20

6691185

NUT

21

6691186

O-RING

22

6679606

O-RING

23

7027073

KIT, END VALVE W/Ref. 17-22

24

6696725

SPOOL

25

6697661

SPOOL

26

7027074

BOOT, RUBBER

27

6685786

ROD END

28

END, ROD TIE NSS - Order Ref. 2

29

KIT, SEAL
