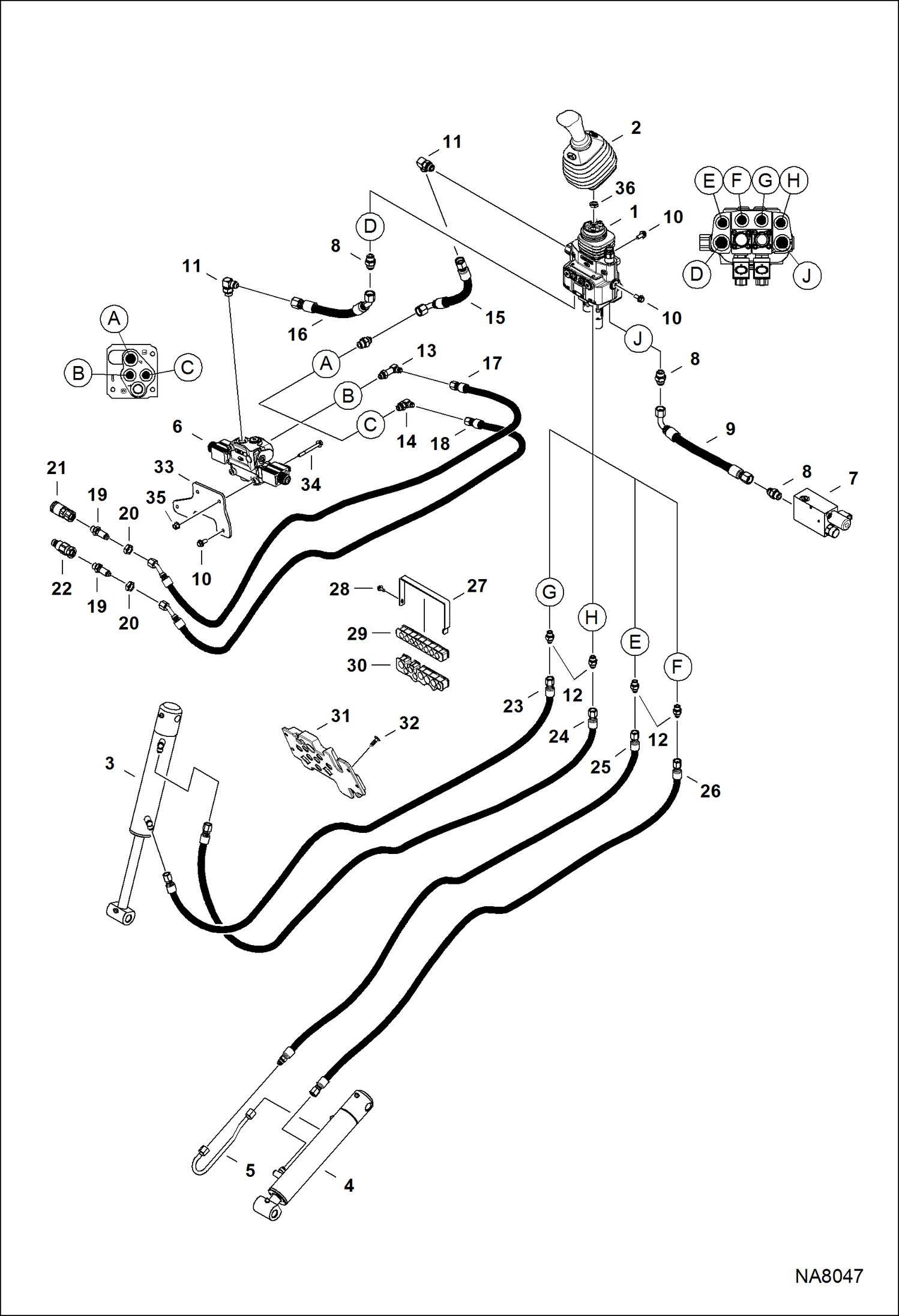

Запчасти Bobcat 3650 HYDRAULIC CIRCUITRY (Work Equipment) HYDRAULIC SYSTEM

1

7023414

VALVE, CONTROL

2

7023821

HANDLE, JOYSTICK

3

7120556

LIFT CYLINDER 2300

4

7211839

CYLINDER, TILT

5

7181936

TUBELINE, HYD

6

7023415

VALVE, SOLENOID

7

7025619

VALVE, MANIFOLD

8

15KB0808

FITTING, HYD CONNECTOR

9

7219750

HOSE, HYD

10

7016176

BOLT

11

17KB0808

FITTING, HYD ELBOW

12

15KB0606

FITTING, HYD CONNECTOR

13

6812815

FITTING

14

17KB0606

FITTING

15

6815894

HOSE

16

7207207

HOSE, HYD

17

7209671

HOSE, HYD

18

7209670

HOSE, HYD

19

6716089

CONNECTOR

20

7024022

NUT, LOCK

21

7031220

COUPLER, FF FEMALE Was 6667803 - B,D

22

7031219

COUPLER, FF MALE Was 6667804 - B,D

23

7207196

HOSE, HYD

24

7207197

HOSE, HYD

25

7207198

HOSE, HYD

26

7207195

HOSE, HYD

27

7210739

BRACKET, GROMMET

28

7016171

BOLT

29

7210738

GUIDE, HOSE

30

7210737

GUIDE, HOSE

31

7210736

GUIDE, HOSE

32

7023337

CLIP, PLASTIC

33

7212053

PLATE

34

7024874

SCREW

35

7016526

NUT

36

7024029

NUT
