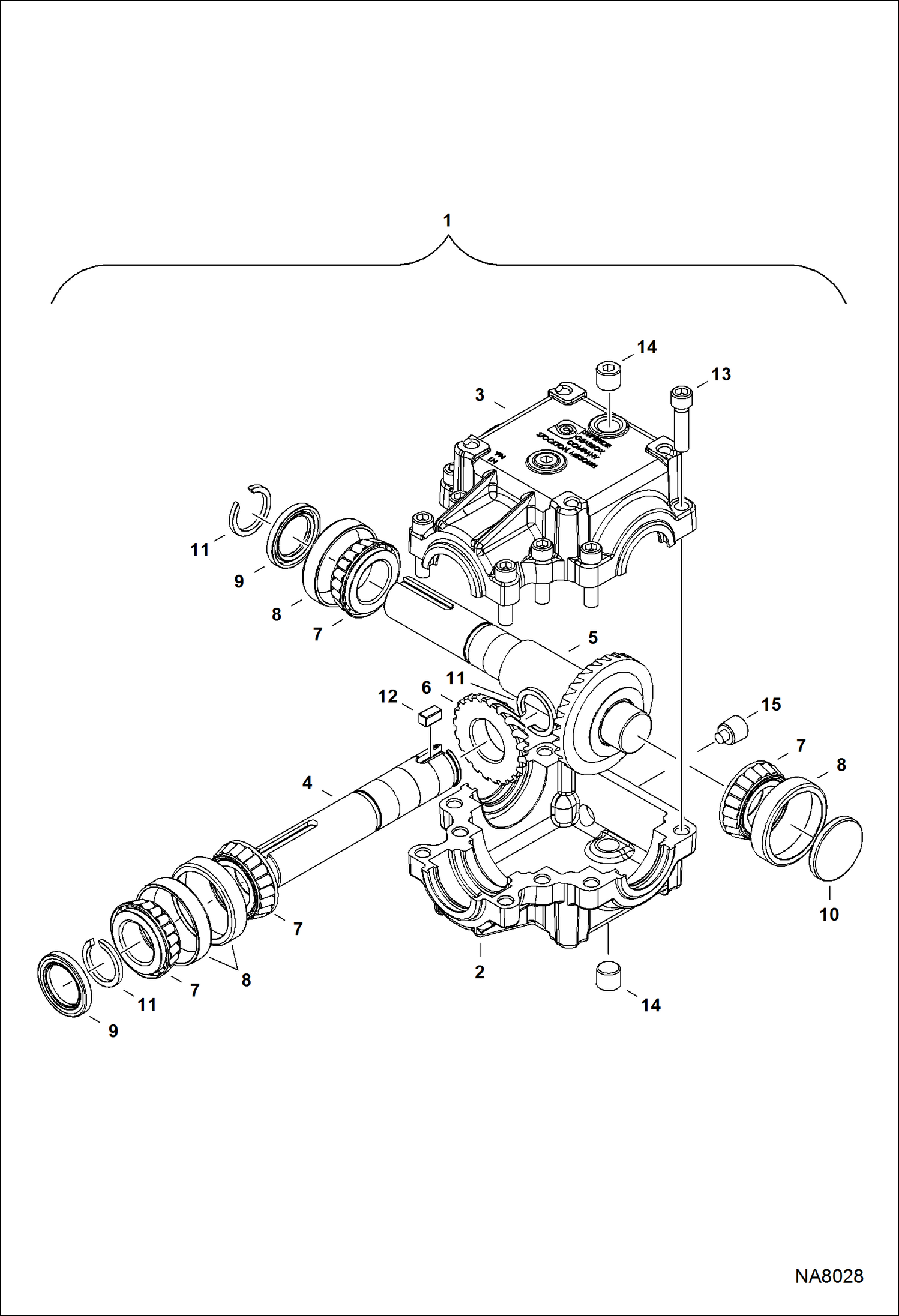

Запчасти Bobcat 3650 PTO GEARBOX DRIVE TRAIN

1

7023309

HOUSING, GEARBOX Ref. 2-15

2

HOUSING, LOWER NSS - Order Ref. 1

3

HOUSING UPPER NSS - Order Ref. 1

4

SHAFT, KEYED NSS - Order Ref. 1

5

SHAFT W/GEAR NSS - Order Ref. 1

6

7001473

GEAR, BEVEL

7

7028212

BEARING, CONE

8

7028213

BEARING, CUP

9

7028214

SEAL, OIL

10

7028215

CAP, SEALING

11

6679796

RING, RETAINING

12

7001476

KEY, SHAFT

13

7024968

BOLT

14

6674790

PLUG

15

7028216

PLUG, MAGNETIC
