Запчасти Bobcat 3650 DRIVE TRAIN, PTO DRIVE TRAIN

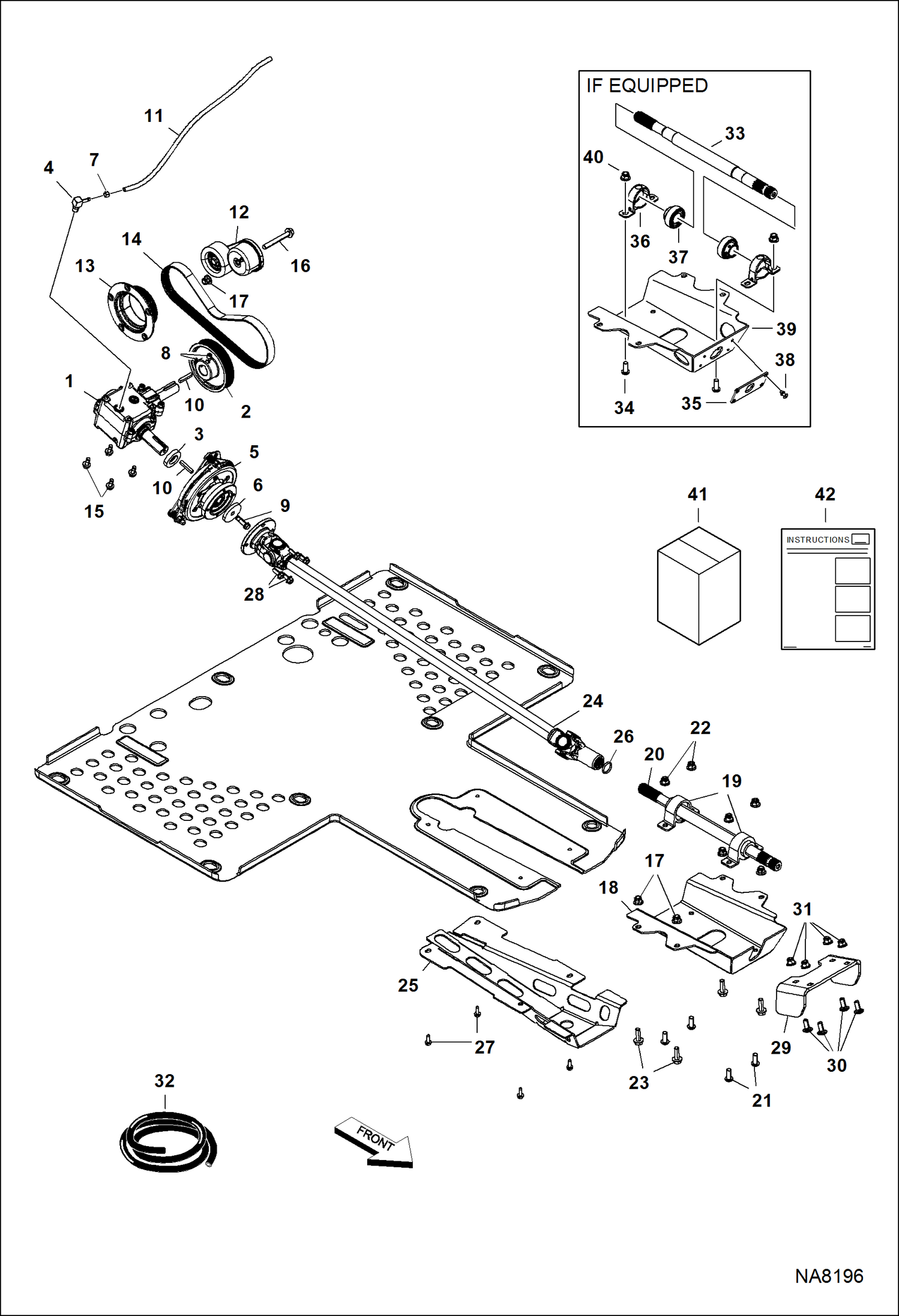

Схема запчастей Bobcat 3650 - DRIVE TRAIN, PTO DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7023309

HOUSING, GEARBOX

2

7210922

PULLEY, DRIVE

3

7211950

WASHER, STEP

4

7211947

FITTING, ELBOW

5

7023419

CLUTCH, ELECTRIC

6

7211951

WASHER

7

7016294

CLAMP, HOSE

8

7023345

SCREW

9

7023343

SCREW

10

7023398

KEY, SHAFT

11

HOSE, VENT NLA - 470 mm (18.5'') long - Order Ref. 32

12

6689611

IDLER MICRO-V

13

7210921

PULLEY, DRIVE

14

7205988

BELT, DRIVE

15

7023413

SCREW

16

7025497

BOLT, FLANGE

17

7016518

NUT

18

7211955

GUARD, PTO

19

7211952

BEARING, BALL

20

7023421

SHAFT, PTO

21

7023425

SCREW

22

7016521

NUT

23

7016642

SCREW

24

7023420

SHAFT, PTO ASSY

25

7222251

GUARD, PTO

26

7025401

O-RING Was 7018979 - A

27

7016645

SCREW

28

7016176

BOLT

29

7222667

GUARD, PTO

30

7024089

BOLT, CARRIAGE

31

7016520

NUT

32

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot

Выбрано товаров: 32
